-17%
Sleva
ADATA XPG ventilátor VENTO PRO 120 PWM, 4-pin konektor
Kód: 748211Na dotaz
Termín a způsob doručení
Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:120x120; Barva podsvícení:bez podsvícení; Napájecí konektor:4pin.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
748211
EAN:
4710273779614
Záruka:
2 Rok(ů)
Stav:
Využití chladiče:
Do PC skříně
Typ chladiče:
Aktivní
Barva podsvícení:
bez podsvícení
Napájecí konektor:
4pin
Velikost ventilátoru:
120x120

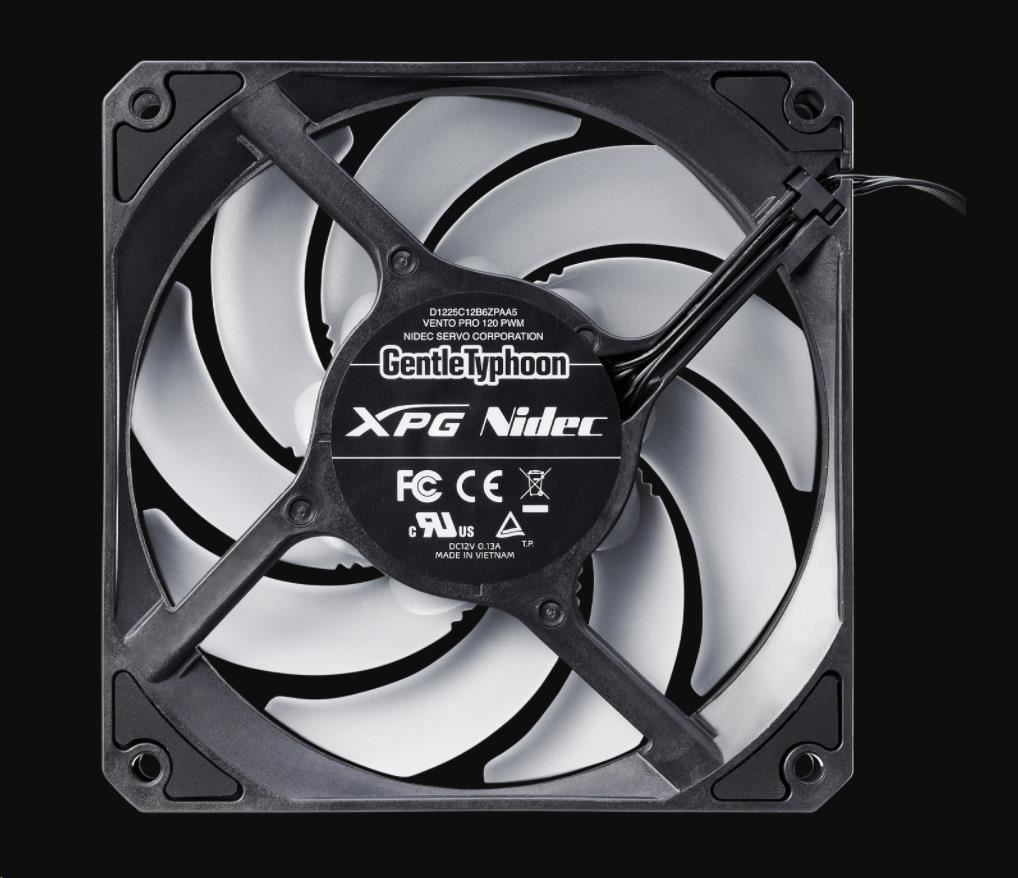

Popis ADATA XPG ventilátor VENTO PRO 120 PWM, 4-pin konektor
XPG VENTO PRO 120 PWM
BE AWESOME
- Cooled by Nidec GentleTyphoon
- 4-Pin PWM Connector
- Daisy Chain Capability
- Dual Bearings Efficient and Silent Performance
- High Static Pressure
XPG has teamed-up with Nidec, improving the original GentleTyphoon design to provide a tailored solution for modders and PC gaming enthusiasts that want only the absolute best.
COOLED by Nidec GentleTyphoon
The best overall static pressure optimized fan makes a strong comeback for the most demanding builds in a revisited capacity.
4-PIN PWM DESIGN and DAISY CHAIN CAPABILITY
Pulse Width Modulation (PWM) allows motherboards to alter fan speed RPM dynamically and smoothly without annoying stepping.
Flat cable design paired with its Daisy Chain capability, it's easy to connect and simultaneously operate together to manage temperatures more efficiently.
HIGH PRECISION DUAL BEARINGS
Equipped with high-precision Japanese quality Dual Bearings, XPG VENTO PRO 120 PWM fan can withstand heavy duty loads and endure the highest thermal environment. Dual Bearings also operate with greater efficiency, granting quiet spinning and longer lifespan.
HIGH STATIC PRESSURE and HIGH AIRFLOW
XPG VENTO PRO 120 PWM has high static pressure up to 3.15mm H2O, and it’s capable of producing up to 75 CFM airflow, making it an ideal air intake/exhaust gear to complement water cooling radiators, or to be installed at the front despite front panel and dust filter limiting airflow.
QUIETER by Nidec DESIGN
Innovative fan motor design and motor support mechanism utilize a double-vibration reduction structure and a spring instrument to greatly dampen and reduce vibration.
In addition, the fan propeller is meticulously designed to reduce the disturbing frequency fan noise to a more refined “vibration tone” better suited to human ears. In addition with the 4 anti-vibration rubber pads, XPG VENTO PRO 120 PWM operates at mere 28dB(A) even at its maximum fan speed of 2,150 RPM (100% duty cycle).
HIGH THERMAL ENDURANCE
XPG VENTO PRO 120 PWM Fan has a verified MTTF (mean time to failure) 250,000 hours at 25?, or 60,000 hours at 60? ambient, which makes it ideal for heavier duty loads, e.g. more space-constrained builds with higher internal temperatures. Taking advantage of the high precision dual bearings, XPG VENTO PRO 120 PWM Fan can quietly operate and maintain stable at a large temperature range.
TECHNICAL SPECIFICATIONS
| Dimensions | 120 x 120 x 25mm |
| Bearing Type | Dual Bearings |
| Connector | 4-Pin PWM |
| Speed (RPM) | 450 ~ 2150 RPM ± 10% |
| Maximum Air Flow | 75 CFM |
| Maximum Static Pressure | 3.15 mm H2O |
| Noise Level | 10 - 28dBA (Max) |
| Fan Rated Voltage | DC 12V |
| Fan Starting Voltage | DC 5V |
| Fan Operating Voltage | DC 5V~13.2V |
| Fan Rated Current | 0.16A (Max) |
| Power Dissipation | 1.56W |
| Fan Protection | Auto-Restart |
| Verified MTTF (Mean Time To Failure) | 25°C:250,000 Hours 60°C:60,000 Hours |
| Cable Length | 620 ± 10mm Total Including a 450mm Extension Cable Daisy-Chain Capable |
| Weight | 210g |
.
