-16%
Sleva

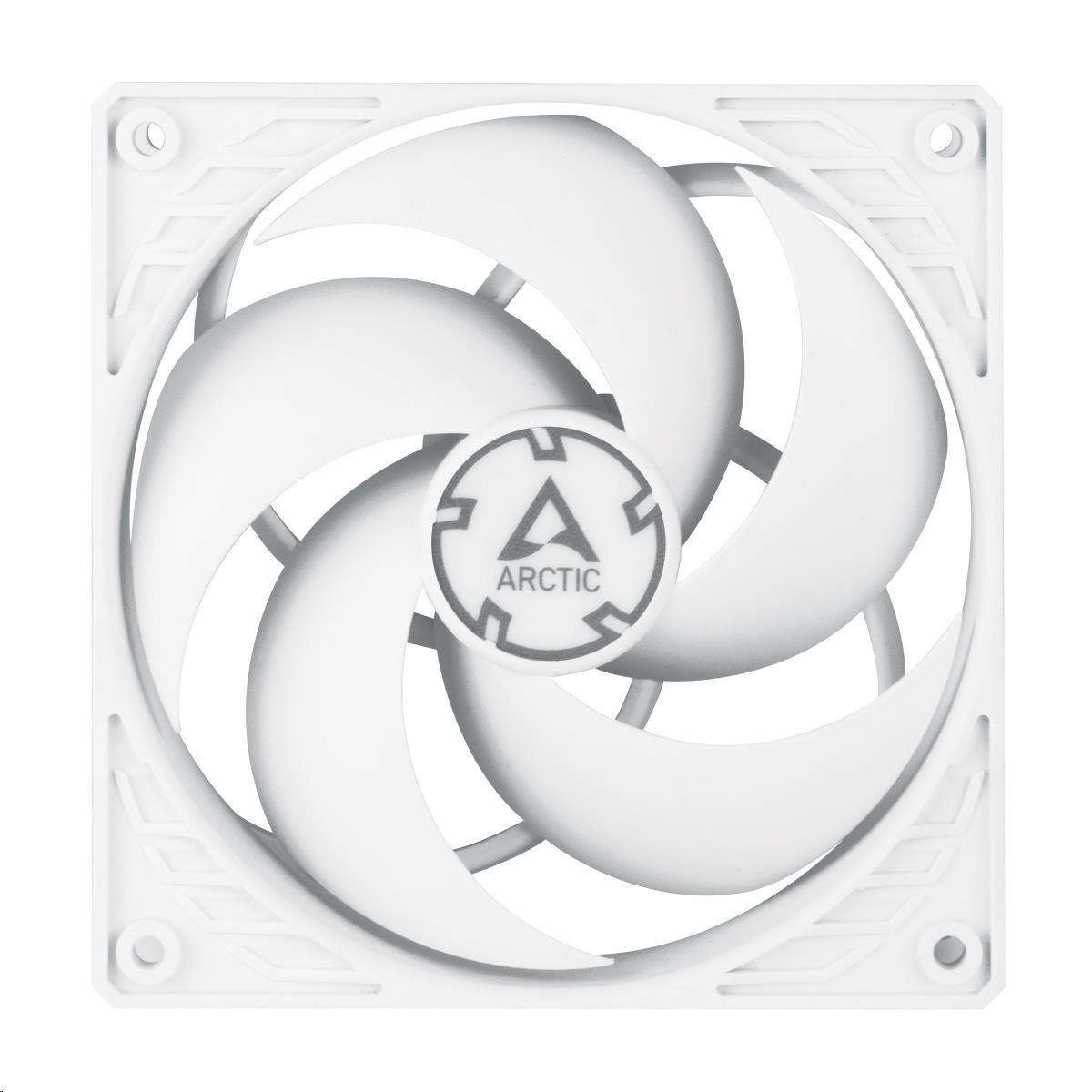

ARCTIC ventilátor P12 PWM PST 120mm, bílá
Kód: 523185Na dotaz
Termín a způsob doručení
Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:120x120; Barva podsvícení:bez podsvícení; Napájecí konektor:4pin.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
523185
EAN:
4895213702263
Záruka:
24 Měsíc(ů)
Stav:
Využití chladiče:
Do PC skříně
Typ chladiče:
Aktivní
Barva podsvícení:
bez podsvícení
Napájecí konektor:
4pin
Velikost ventilátoru:
120x120
Popis ARCTIC ventilátor P12 PWM PST 120mm, bílá
P12 PWM PST
The P12 PWM PST is a fan with PWM PST connectors. It features completely redesigned fan blades and is optimised
for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance. The wide RPM range from 200 to 1800 RPM can be regulated
seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST). The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Push- or pull-configuration
- PWM Sharing Technology (PST) regulates fan speed synchronously
- Newly developed, very quiet motor
- Extended life span
- Available in three sleek colors
TECHNICAL SPECIFICATIONS
| Performance | |
| Fan Speed | 200 - 1800 rpm |
| Airflow | 56.3 CFM/ 95.7 m3/h |
| Static Pressure | 2.20 (mm/H2O) |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Controll Type | PST |
| Connector | 4-Pin-Connector + 4-Pin-Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 3.9 V |
| Current | 0.08 A |
| Cable Lenght | 400 mm |
| Size & Weight | |
| Lenght | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 145 g |
.
