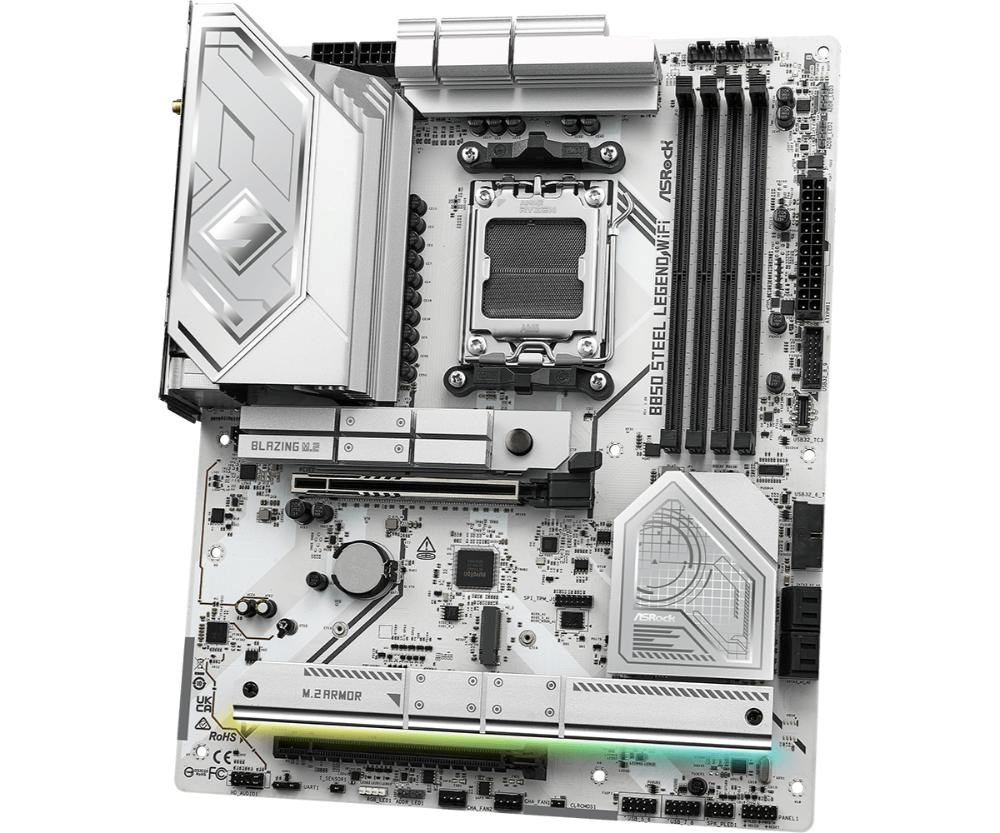

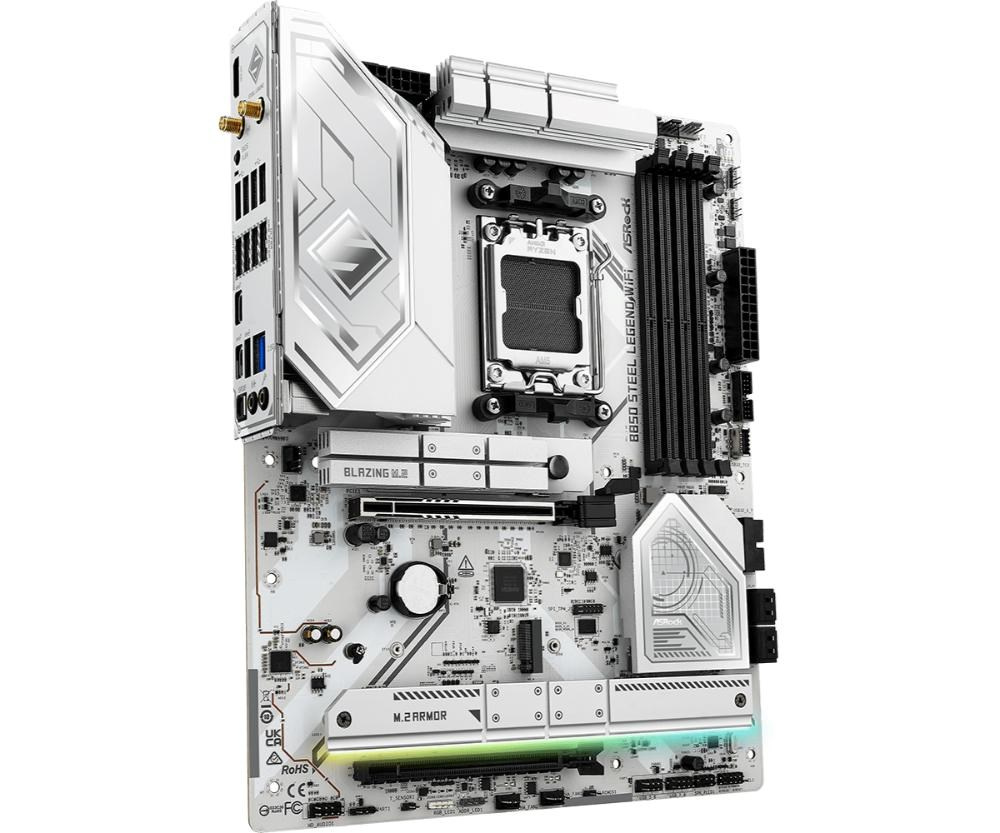

ASRock MB Sc AM5 B850 Steel Legend WiFi, AMD B850, 4xDDR5, 1xHDMI, WiFi, ATX
Kód: 1883004Skladem
Termín a způsob doručení
Formát základní desky:ATX; Chipset:AMD B850; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:4; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI Express x1:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1883004
EAN:
4711581490062
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket AM5 (LGA 1718)
Chipset:
AMD B850
PCI Express x16:
2
Podpora RAID:
10, 1
COM port:
Ne
LPT port:
Ne
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
AMD
Počet paměťových slotů:
4
TPM:
Ano
USB 2:
8
USB 3:
9
M.2 slot:
4
SATA 3:
4
HDMI:
1
Led Header:
Ano
USB C:
3
LAN:
2.5Gbit/s
Popis ASRock MB Sc AM5 B850 Steel Legend WiFi, AMD B850, 4xDDR5, 1xHDMI, WiFi, ATX
ASRock B850 Steel Legend WiFi
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
- AMD B850
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
*
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- Individual PCB Layers for R/L Audio Channel
- Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
- Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless LAN
- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz* frequency band
- Supports 160MHz channel bandwidth with 6GHz* frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
*The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_4 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
ASMedia ASM1061:
- 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
If M2_4 is occupied, PCIE2 will be disabled.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
CPU:
- 2 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header
- 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
- 3 x USB 3.2 Gen1 Type-A Ports*
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
* USB32_12 are Lightning Gaming Ports.
** USB32_34 supports Ultra USB Power.
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Thermistor Cable
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
