ASUS MB Sc LGA1851 B860M MAX GAMING AX, Intel B860, 4xDDR5, 1xDP, WiFi, mATX
Kód: 1887653Skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel B860; Socket (patice):Socket 1851; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:4; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:0; VGA:0; DVI:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887653
EAN:
4711387831694
Záruka:
36 Měsíc(ů)
Stav:
Novinka
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1851
Chipset:
Intel B860
PCI Express x16:
4
Podpora RAID:
1, 10, 5
COM port:
Ne
LPT port:
Ne
Formát základní desky:
micro ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
10
USB 3:
7
M.2 slot:
3
SATA 3:
4
Led Header:
Ano
USB C:
2
LAN:
2.5Gbit/s
Popis ASUS MB Sc LGA1851 B860M MAX GAMING AX, Intel B860, 4xDDR5, 1xDP, WiFi, mATX

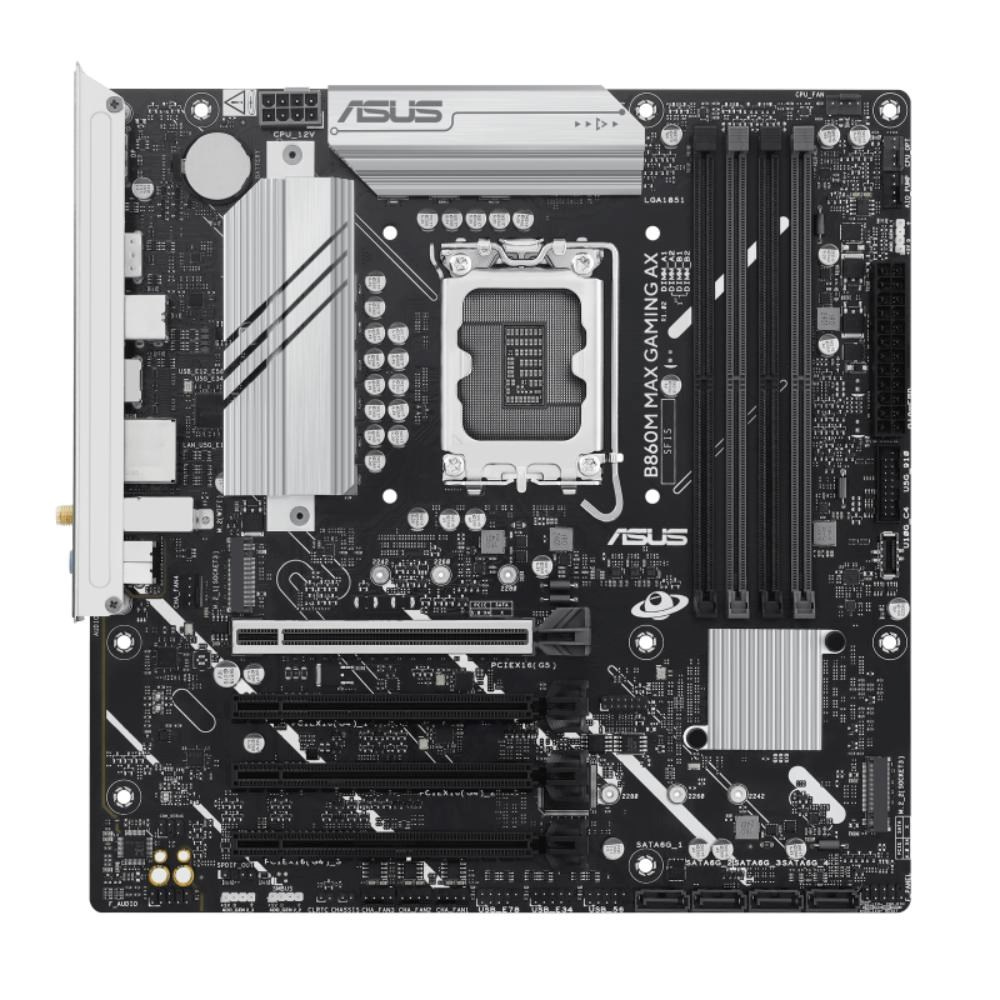

ASUS B860M MAX GAMING AX
ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the B860M MAX GAMING AX motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (support x1 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel®B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A )
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 header supports 6 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A
** USB 5G_E1 port, USB 5G_E2 port, USB 5G_E3 port and USB 5G_E4 port share the bandwidth.
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
**** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

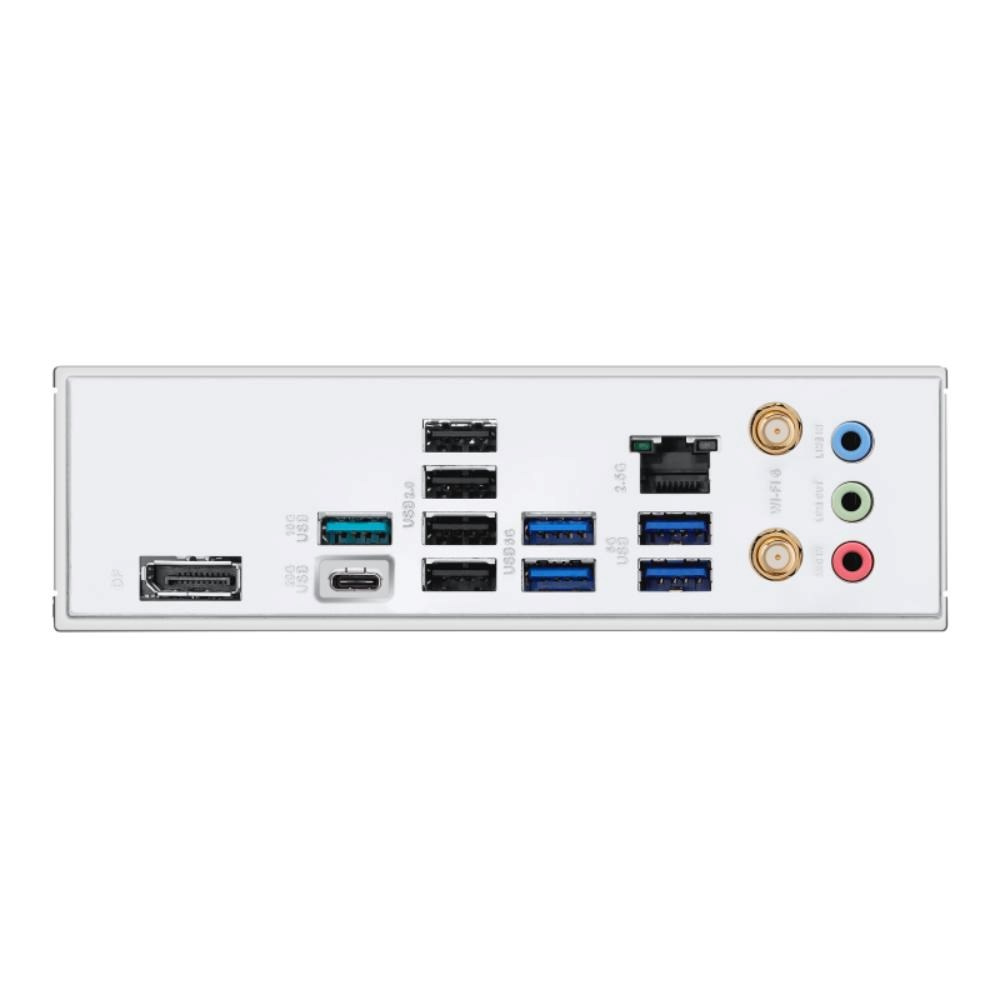

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 header supports 6 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

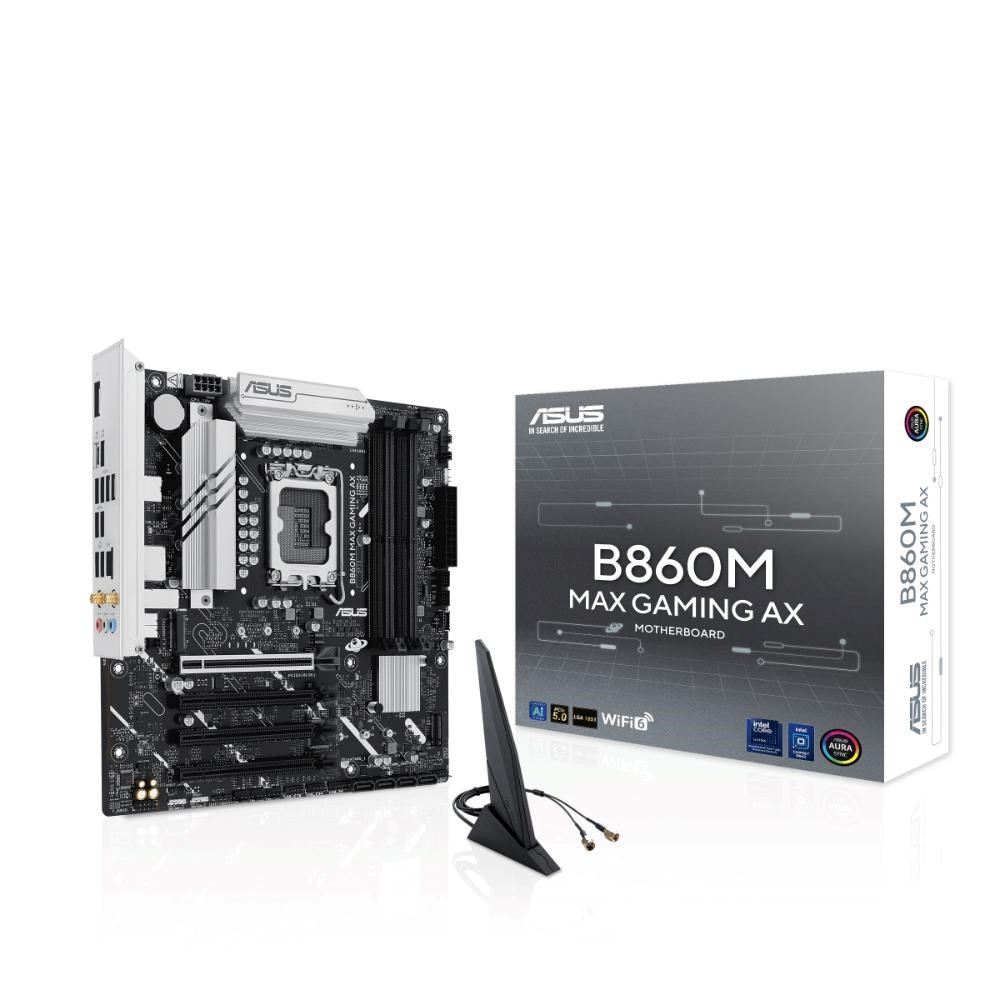

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi moving antenna
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
