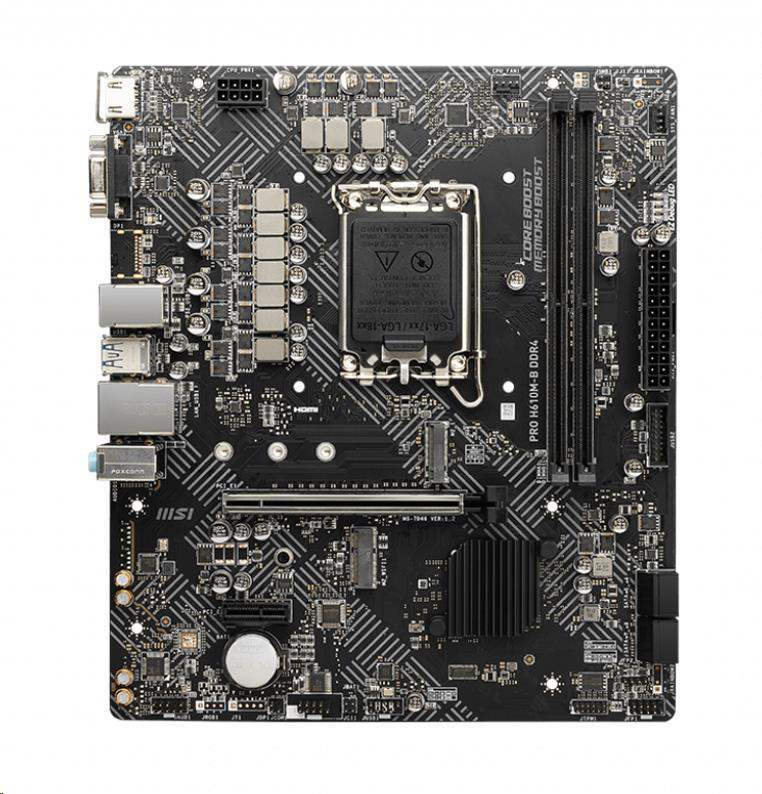

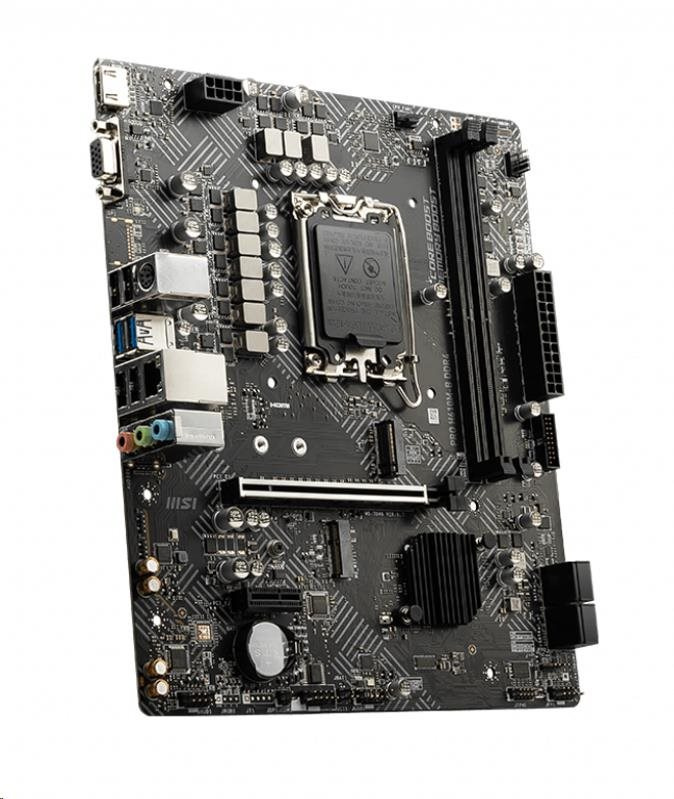

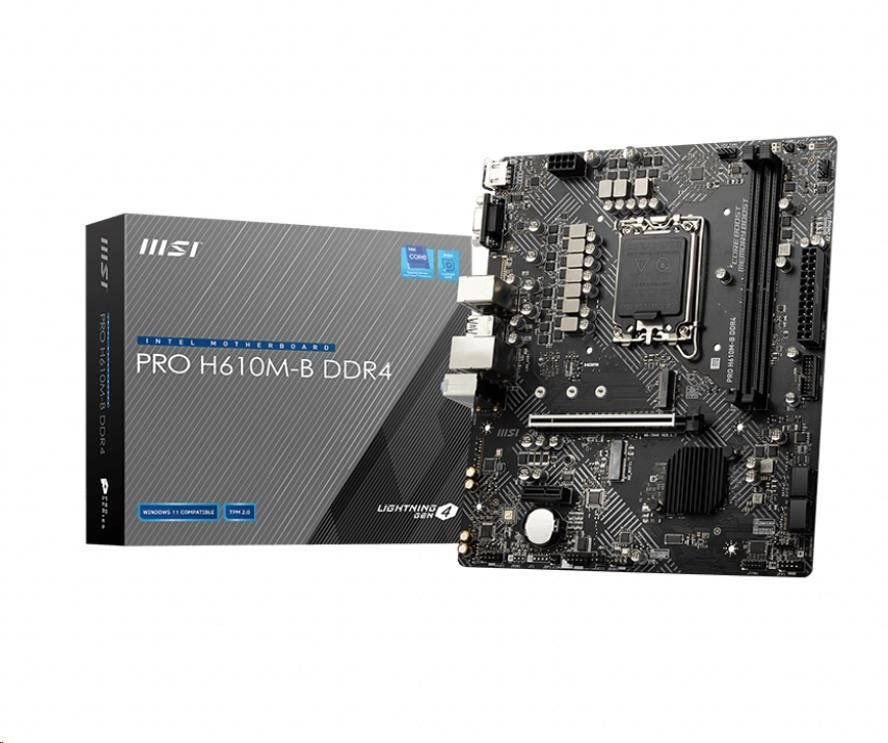

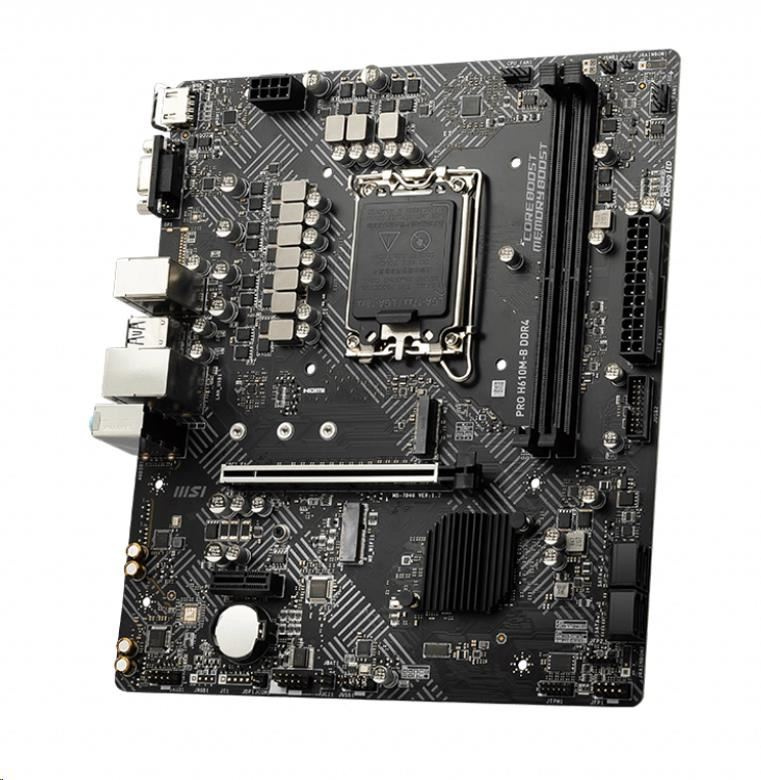

BAZAR - MSI MB Sc LGA1700 PRO H610M-B DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX - Po opravě (Bez příšlušenství)
Kód: 2648332Skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel H610; Socket (patice):Socket 1700; Technologie paměti RAM:DDR4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; Integrovaná LAN karta:1; Další rozhraní:M.2.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648332
EAN:
2648332
Záruka:
12 Měsíc(ů)
Stav:
Bazar
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Chipset:
Intel H610
PCI Express x16:
1
Integrovaná LAN karta:
1
Podpora RAID:
Bez RAID podpory
Další rozhraní:
M.2
Formát základní desky:
micro ATX
Popis BAZAR - MSI MB Sc LGA1700 PRO H610M-B DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX - Po opravě (Bez příšlušenství)
PRO H610M-B DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors*
Processor socket LGA1700
*Please go to www.msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® H610 Chipset
MEMORY
2x DDR4 memory slots, support up to 65GB*
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
*Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */**
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz */**
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.
SATA PORTS
4x SATA 6Gb/s ports*
*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
1x M.2 slot (Key M, from chipset) *
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Smart Response Technology for Intel Core™ processors
*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
AUDIO
Realtek® ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Intel® I219V 1Gbps LAN controller
POWER CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
USB
Intel® H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
FAN CONNECTORS
1x 4-pin CPU fan connector
1x 4-pin system fan connector
SYSTEM CONNECTORS
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
JUMPERS
1x Clear CMOS jumper
LED FEATURES
4x EZ Debug LED
BACK PANEL PORTS
HDMI
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
MSI PRO H610M-B DDR4 back panel ports
DIMENSIONS
M-ATX Form Factor
9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
