BAZAR - MSI MB Sc LGA1700 PRO Z790-P WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI - Po opravě (Bez příšlušenství)
Kód: 2648720Skladem
Termín a způsob doručení
Formát základní desky:ATX; Chipset:Intel Z790; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:4; SATA 3:6; Podpora RAID:0, 1, 5, 10; PCI Express x16:3; PCI Express x1:1; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0; USB 2:8.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648720
EAN:
2648720
Záruka:
12 Měsíc(ů)
Stav:
Bazar
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1700
Chipset:
Intel Z790
PCI Express x16:
3
Podpora RAID:
1, 5, 10
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
8
USB 3:
7
M.2 slot:
4
SATA 3:
6
HDMI:
1
Led Header:
Ano
PCI Express x1:
1
USB C:
2
LAN:
2.5Gbit/s
Popis BAZAR - MSI MB Sc LGA1700 PRO Z790-P WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI - Po opravě (Bez příšlušenství)

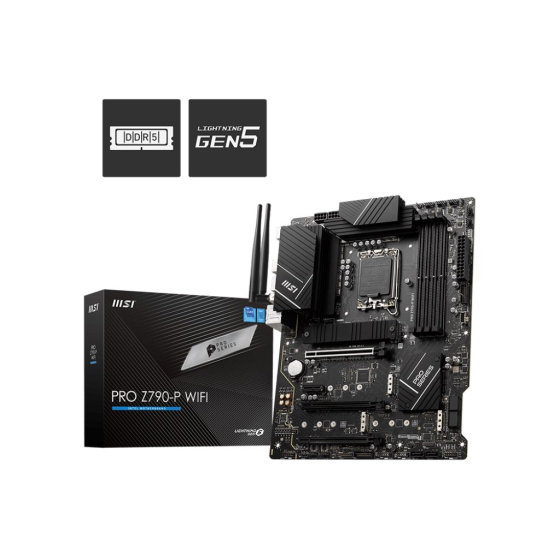

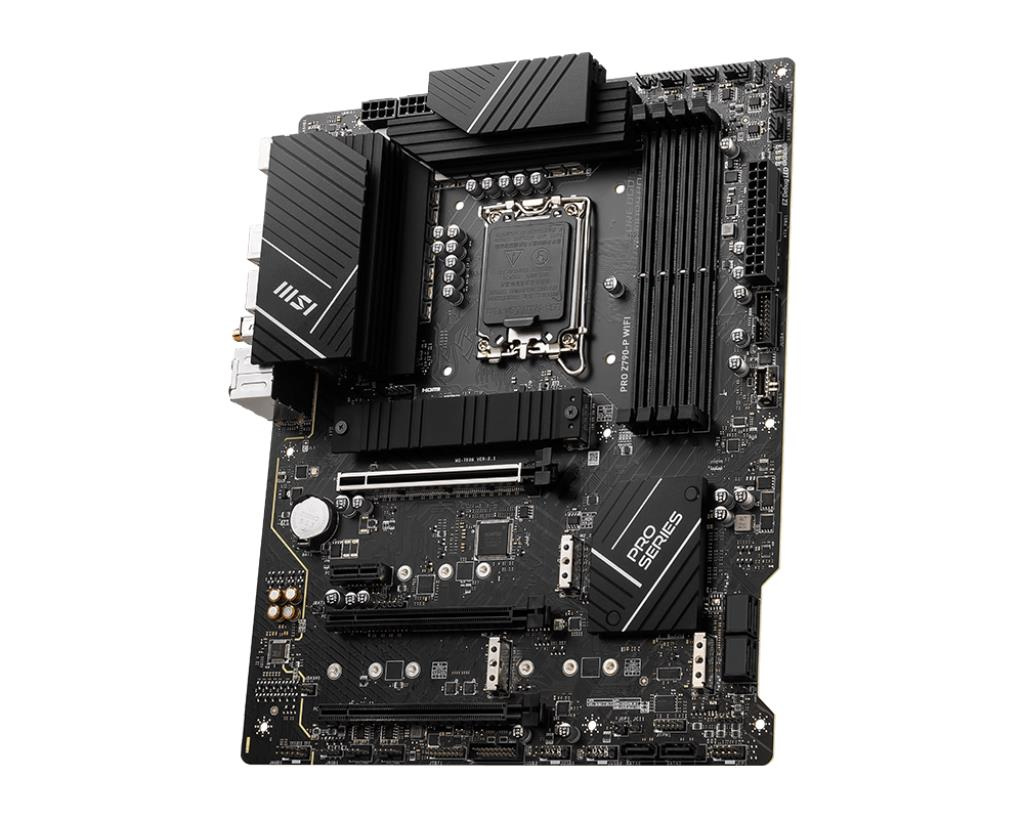

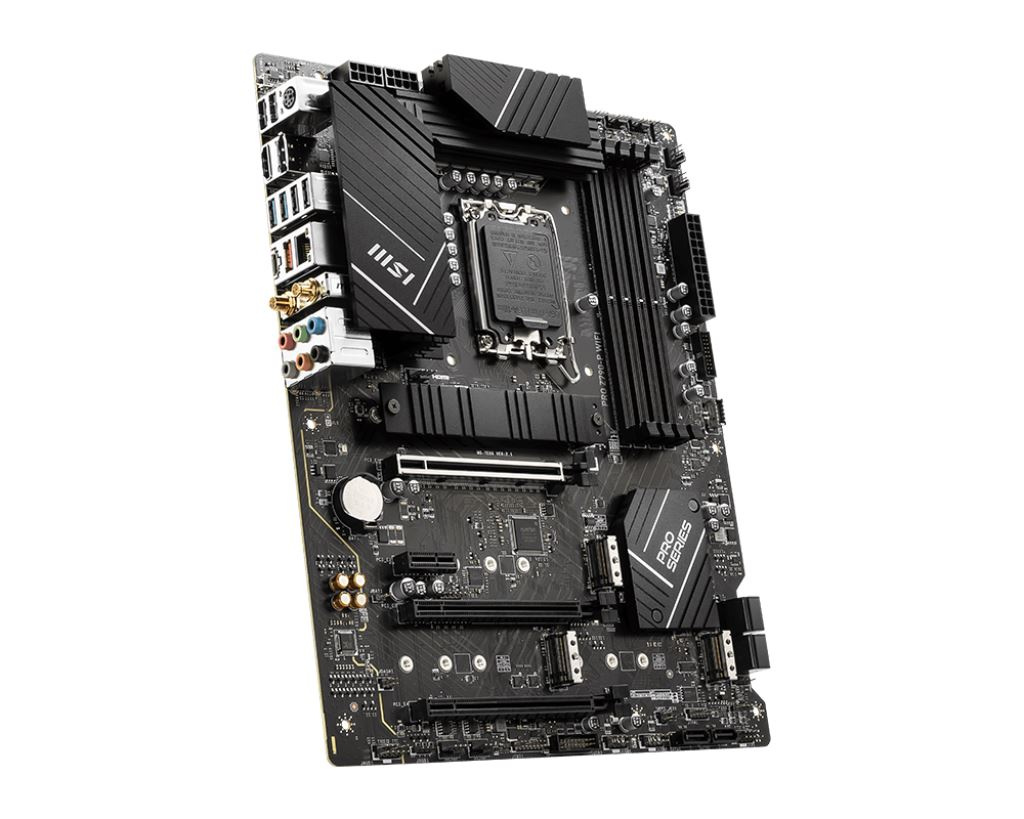

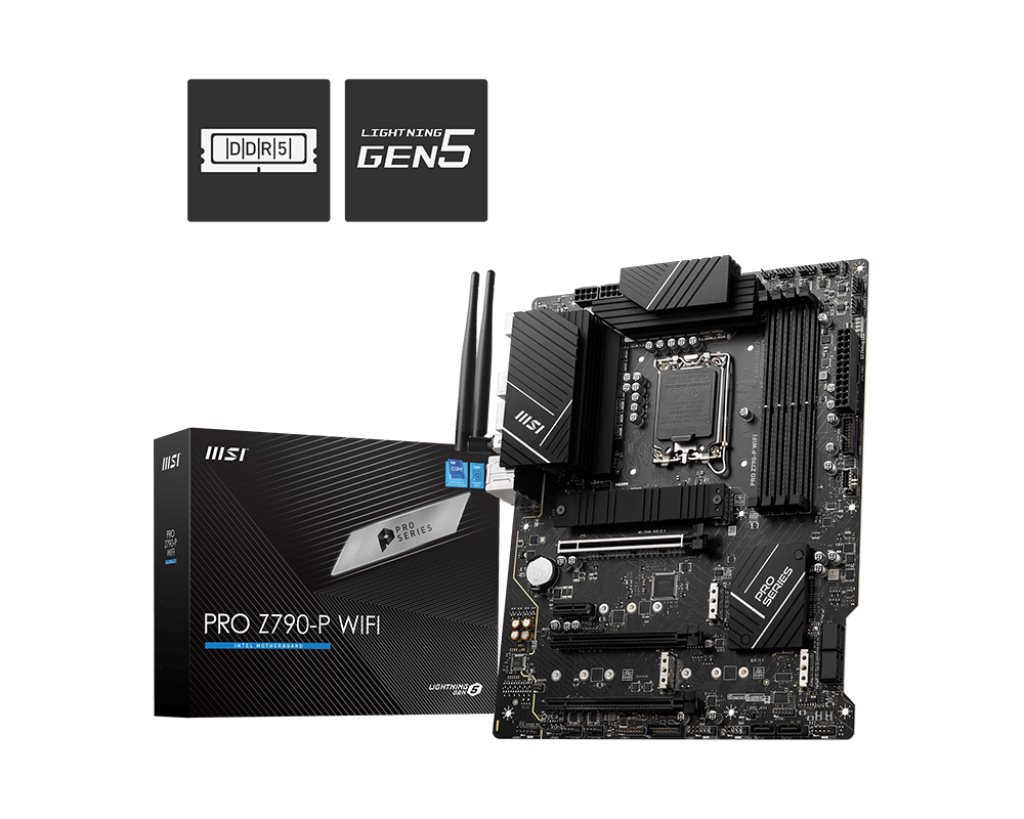

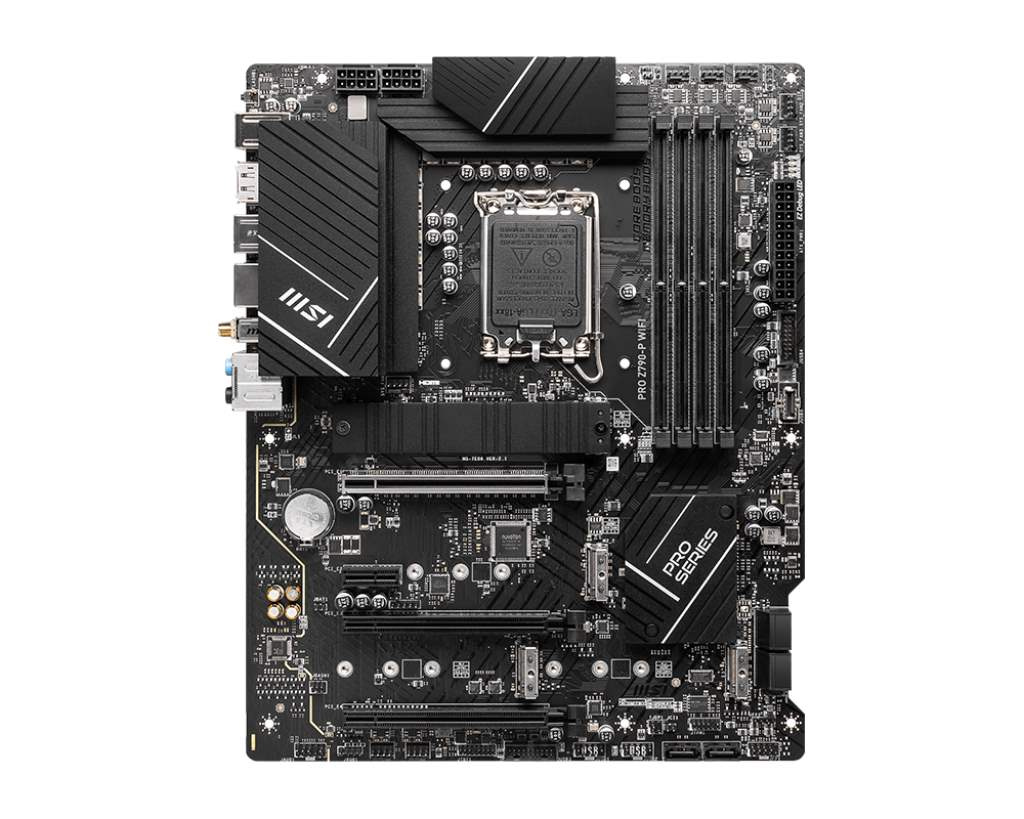

PRO Z790-P WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
CHIPSET
INTEL Z790
CPU SUPPORT
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
MEMORY
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x HDMI™
1x DisplayPort
EXPANSION SLOT
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE
4x EZ Debug LED

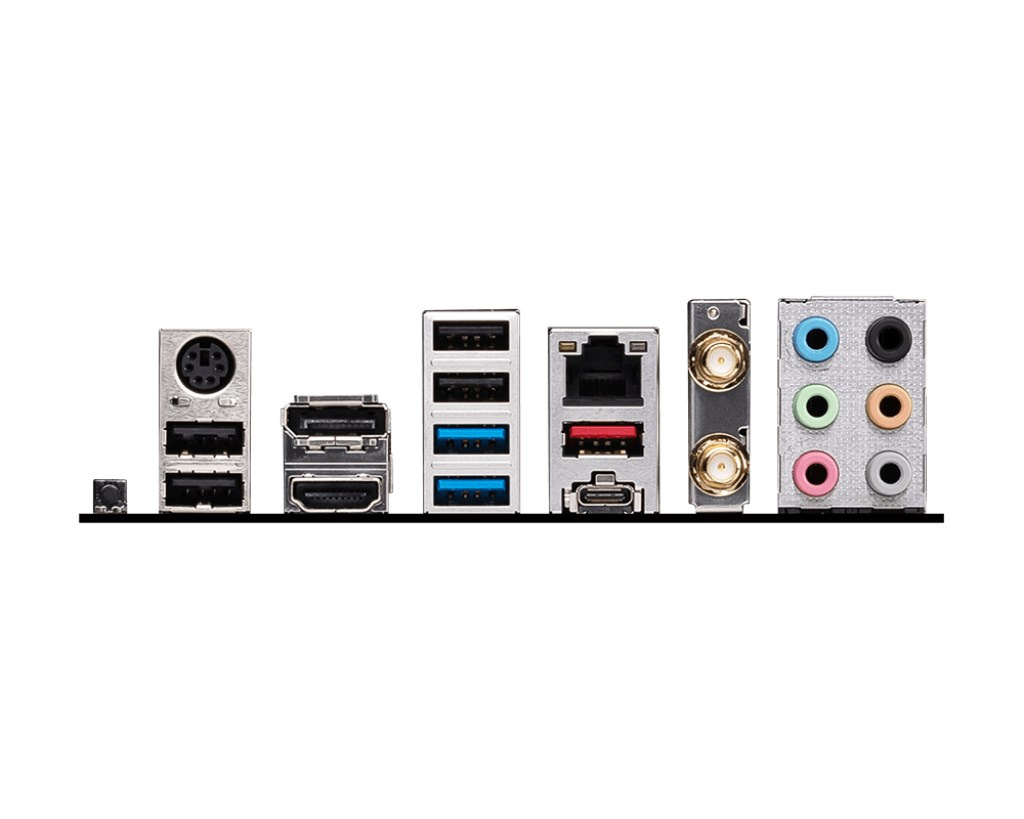

BACK PANEL PORTS
Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
ATX
243.84mmx304.8mm
