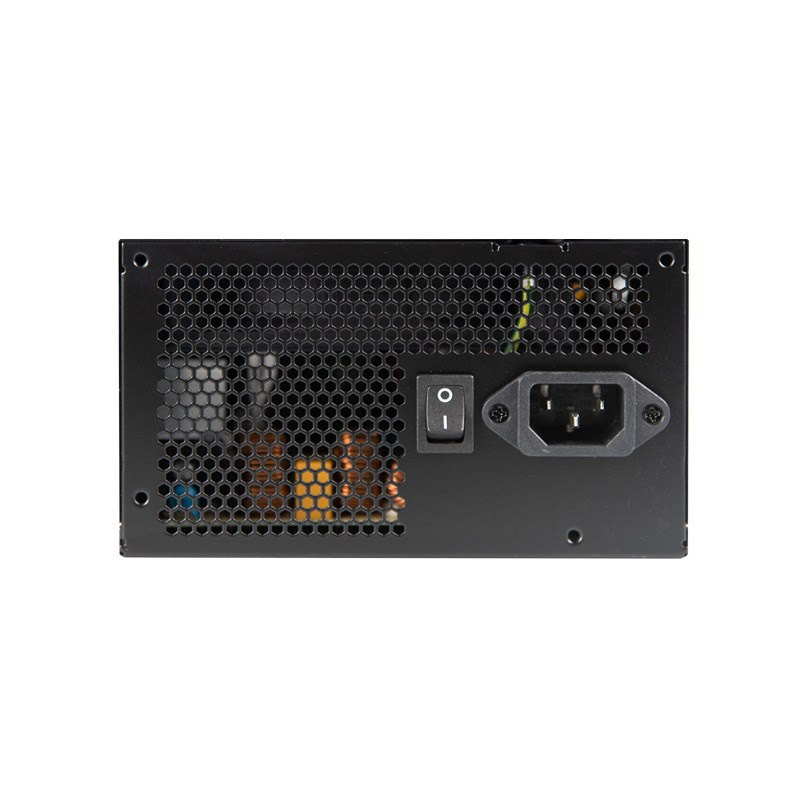

CHIEFTEC zdroj Task, TPS-700S, 700W, Full Range, 80+ Bronze, retail
Kód: 1022628Na dotaz
Termín a způsob doručení
Výkon zdroje (W):700; Formát zdroje:ATX; Konektory:PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Efektivita zdroje:80 Plus Bronze.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022628
EAN:
753263076502
Záruka:
24 Měsíc(ů)
Formát zdroje:
ATX
Konektory:
PCIe 8-pin, Molex, SATA 15-pin, PCIe 6-pin, FDD
Konektory pro základní desku:
EPS 8-pin, ATX 24-pin
Efektivita zdroje:
80 Plus Bronze
Modulární kabeláž:
Ne
Výkon zdroje (W):
700
Popis CHIEFTEC zdroj Task, TPS-700S, 700W, Full Range, 80+ Bronze, retail
TPS-700S
- 80PLUS® Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.
With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.
With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
SPECIFICATIONS:
Performance
.| Model | Task 700W |
| Article no. | TPS-700S |
| EAN code | 0753263076502 |
| Weight (without/with package) | 1.74 kg / 2.15 kg |
| AC Input | 100-240V / 10.0A |
| Frequency | 47-63Hz |
| +5V | 17A |
| +3,3V | 19A |
| +5V & +3,3V combined | 110W |
| +12V 1 | 648W / 54A |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 2,5A / 12,5W |
| Maximum Power | 700W |
Connectors
| 24PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX | 3 |
Cable length
| 24PIN ATX | 650 |
| 8 PIN EPS (4+4) | 650 |
| 8 PIN PCIe (6+2) | 500/150 |
| MOLEX | 500/150/150 |
| SATA | 500/150/150 |
| SATA | 500/150/150 |
Features
| Specification | ATX 12V 2.3 |
| Form factor | PS II |
| Efficiency | 80 PLUS® Bronze |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0.9) |
| Fan | 120mm silent fan |
| Security |
|
| Warranty | 24 Months |
