Club3D hub USB-C Gen2 PD na 2x USB-C 10G porty a 2x USB-A 10G porty
Kód: 795185Skladem
Termín a způsob doručení
Druh IO zařízení:USB hub nebo switch; Provedení:Externí.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
795185
EAN:
8719214472061
Záruka:
24 Měsíc(ů)
Stav:
Druh IO zařízení:
USB hub nebo switch
Provedení:
Externí
Popis Club3D hub USB-C Gen2 PD na 2x USB-C 10G porty a 2x USB-A 10G porty
USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports

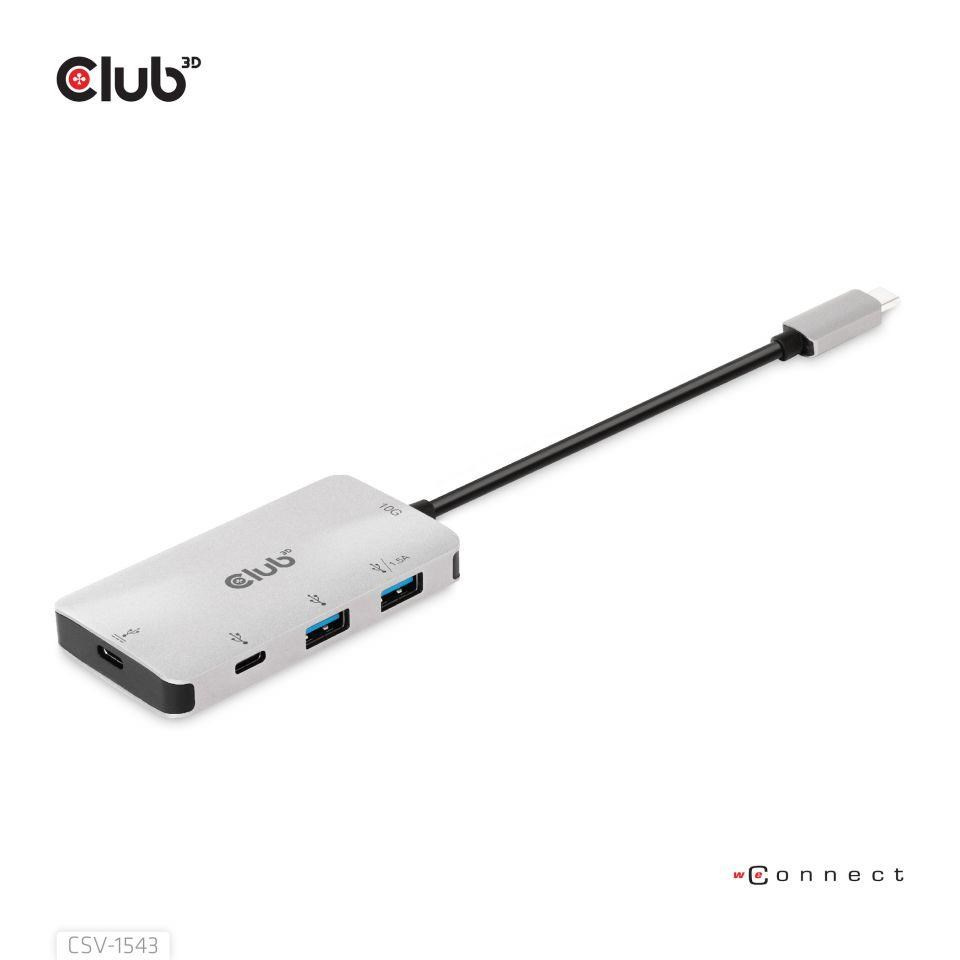

The Club 3D CSV-1543 is an USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports.The two USB Type-A ports are designed for transmitting data and one of the two USB Type-A ports can provide 1.5A charging for the connected USB Type-A devices (mobile phones, tablets, U-disk, etc). One of the two USB Type-C ports is designed for transmitting data and charging for the connected USB Type-C device, the other USB Type-C port supports both data and PD3.0 charging. It can work on any USB Type-C host (PC, notebook, tablet, Mobile phone, etc) that supports DP Alt mode.
High Power Conversion Efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V.
Advanced Power Management. The output power will guarantee uninterrupted working of USB Type-A SSD and U Disk when the Vin is in 5; 20V, so the connected USB device will not get disconnected while plugging in and out the PD Charger from the USB Type-C charging port.
Supported USB device current is as follows: 1.5A @PD3.0 device
- High Power Conversion Efficiency, means low power consumption and low heating, 98.2%@Vin=5V; 92.5% @Vin=20V
- Advanced Power Management
- Support Fast Role Swap of PD 3.0
- Support USB Type-C input, 2x USB Type-C + 2x USB Type-A output
- Compliant with USB 3.1 specification and downward compatible with lower versions
TECHNICAL SPECIFICATIONS
| USB Type-A | - Both USB Type-A ports support max. 10Gbps data transmission - 1 USB Type-A supports 5V/1.5A downstream charging(when Type-C PD power Charger is connected) |
| USB Type-C | - 1 USB Type-C port supports max. 10Gbps data transmission speed - Another Type-C port supports max. 10Gbps as downstream data port and max 100W PD charging as upstream charging port - When USB Type-C PD power Charger is connected, the max output of 2x USB Type-A and 1 USB Type-C downstream ports is 3A - When USB Type-C PD power Charger is not connected, the max output of all the downstream ports depends on the host eg:1.5A on macbook ,900mA on Chromebook, etc., depending on the specifications of your host device. |
| OS Support | All |

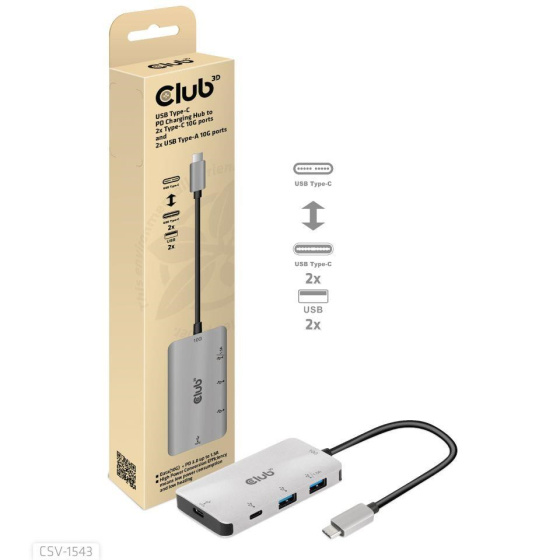

| In the box | CSV-1543 USB Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports |
| Available Interfaces | Input: - 1x USB Gen2 Type-C Male Output: - 1x USB Type-C Female for Data - 1x USB Type-C Female for Data and Charging - 1x USB Type-A Female for Data - 1x USB Type-A Female for Data and Charging(Max.1.5A when a USB Type-C PD Power Charger is connected) |
| Other info | - Box size: 7 x 32 x 3.5cm 2.76 x 12.6 x 1.38" - Device size: 8.5 x 4.5 x 1.2 cm / 3.35 x 1.77 x 0.47" - Total Length: 25.4 cm / 10" - USB Type-C connector dimensions: 3.4 x 1.3 x 0.7 cm / 1.34 x 0.51 x 0.28" - Device Weight: 60 gr / 2.12 oz - Box Weight: 42 gr / 1.48 oz - LDPE Bag Weight: 3 gr / 0.1 oz - Total Weight: 105 gr / 3.7X oz - Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
