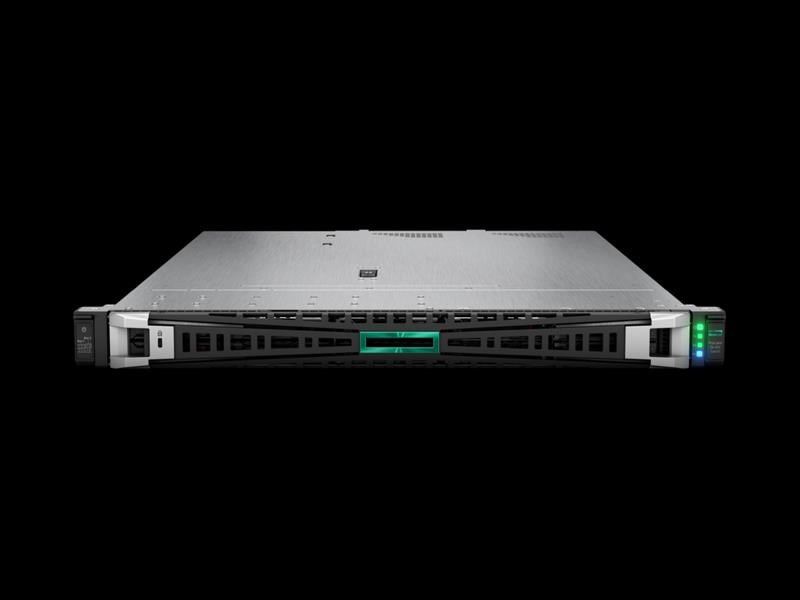

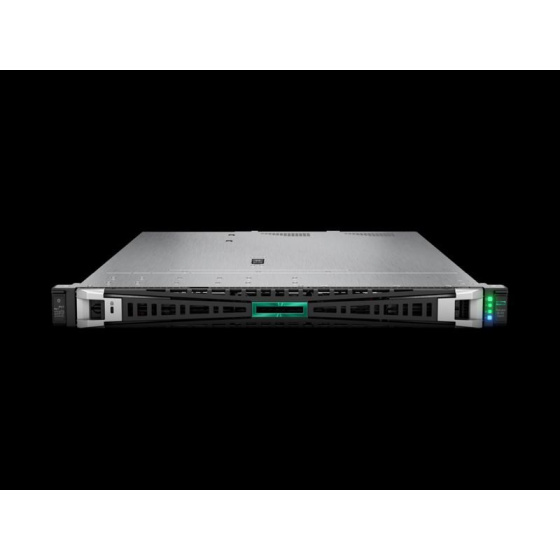

HPE PL DL320g11 3408U (1.8/8C/4800) 16G 8SFF BC U3 500Wti 2x1Gb 1U EIR

HPE PL DL320g11 3408U (1.8/8C/4800) 16G 8SFF BC U3 500Wti 2x1Gb 1U EIR
SKU number P57686-B21
Model Name HPE ProLiant DL320 Gen11 3408U 1.8GHz 8-core 1P 16GB-R 4LFF 500W PS Server
Chassis 8SFF
Backplane 8SFF x1Trimode U.3 Basic Carrier Backplane
Number of Processors 1 socket
Processor 3408U (8-Core, 1.8 GHz, 125W)
Memory 16 GB UDIMM DDR5; 4800 MT/s (1x 16GB) & 15 DDIMM Blanks
Network Controller HPE embedded 2-port 1 GbE Ethernet adapter
Storage Controller Embedded SATA controller (AHCI or Intel SATA software RAID controller)
Hard Drive None ship as standard
Optical Drive Bay Not included (Optical Drive options available)
PCI-Express Slots 2 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot
Power Supply 1 x 500W Platinum
Fans 5 Standard
Management HPE iLO6
Security TPM (Trusted Platform Module)
Rail Kit Easy Install w/o CMA
Form Factor 1U Rack
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
Serial 1 port - Optional
Video 1 front Display port (optional) + 1 Rear - VGA port (standard on all chassis types)
Network Ports 2x 1GbE embedded NIC (standard on all chassis types), Choice of OCP or standup card, supporting a wide arrange of NIC adapters
iLO Remote Mgmt Port 1Gb Dedicated
Front iLO Service Port 1 std
USB 4 standard on all models: 1 front(USB 3.2 Gen1), 2 rear (USB 3.2 Gen1), 1 internal (USB 2.0) +1 optional USB 2.0 front in 4LFF & 8SFF Notes: USB 3.2 Gen1 is referred to as USB 3.0 in some marketing documents.

Operating Systems and Virtualization Software

See HPE Servers Support & Certification Matrices

• Microsoft Windows Server
• VMware ESXi
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Canonical Ubuntu
• Oracle Linux and Oracle VM
• Citrix
• Community Enterprise Linux (CentOS, Alma Linux, Rocky Linux)
