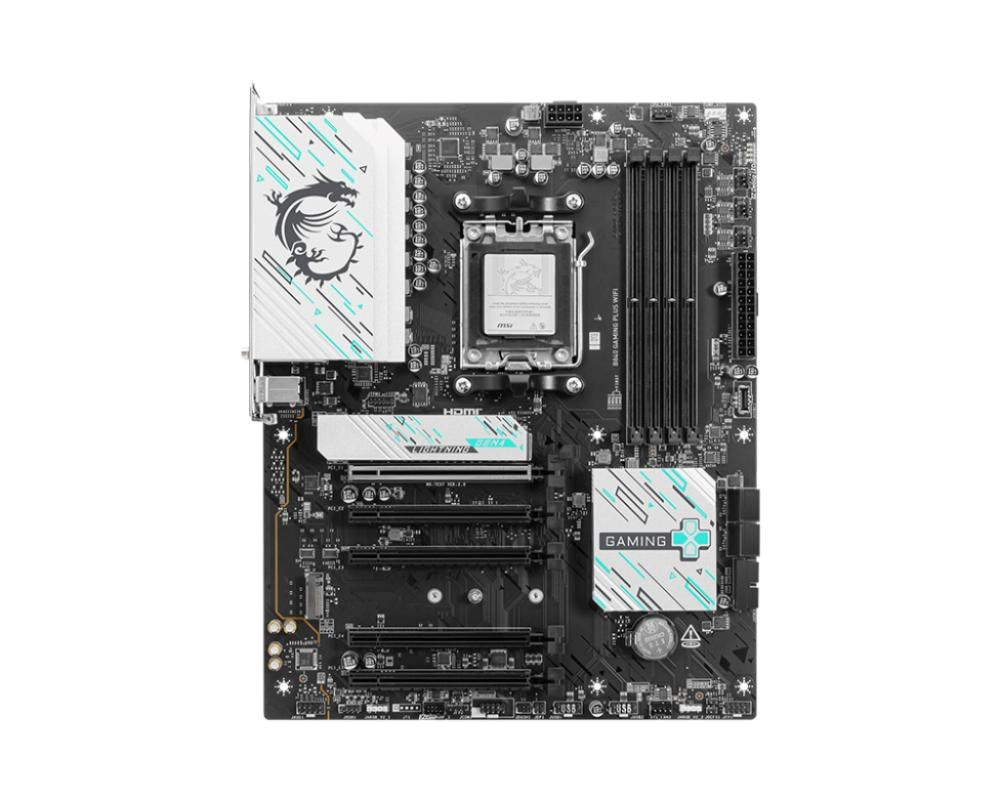

MSI MB Sc AM5 B840 GAMING PLUS WIFI, AMD B840, 4xDDR5, 1xHDMI, WiFi, ATX
Kód: 2648628Na dotaz
Termín a způsob doručení
Formát základní desky:ATX; Chipset:AMD B840; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1; PCI Express x16:5; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0; Počet Thunderbolt:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648628
EAN:
4711377286589
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket AM5 (LGA 1718)
Chipset:
AMD B840
PCI Express x16:
5
Podpora RAID:
1
COM port:
Ano
LPT port:
Ne
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
AMD
Počet paměťových slotů:
4
TPM:
Ano
USB 2:
8
USB 3:
5
M.2 slot:
2
SATA 3:
4
HDMI:
1
Led Header:
Ano
USB C:
2
LAN:
2.5Gbit/s
Popis MSI MB Sc AM5 B840 GAMING PLUS WIFI, AMD B840, 4xDDR5, 1xHDMI, WiFi, ATX
MSI B840 GAMING PLUS WIFI
The B840 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Chipset
AMD B840
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
* PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Audio
Realtek® ALC897
7.1-Channel High Definition Audio
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
LAN
Realtek® 8125BG 2.5G LAN
Internal IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
Clear CMOS Button
USB 10Gbps (Type-A)
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™ 2.1 Port
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
OPERATING SYSTEM
Support for Windows® 11 64-bit
FORM Factor
ATX
243.84mmx304.8mm
