HPE Networking Instant On Switch 5p Gigabit 1430 R8R44A
Kód: 1881014Skladem
Termín a způsob doručení
Provedení:Desktop; Funkce:QoS (Quality of service), L2; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:5; Počet portů LAN:5; Počet SFP portů:0; Počet portů SFP28:0; Počet portů SFP28:0; Maximální počet portů:5; Přenosová rychlost LAN (Mb/s):7.5; Maximální počet portů:5.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1881014
EAN:
190017600987
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
5
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Ne
Provedení:
Desktop
Přenosová rychlost LAN (Mb/s):
7.5
Funkce:
L2
Počet portů LAN:
5
Ventilátor:
Ne
Počet portů LAN:
5,000000000
Maximální počet portů:
5,000000000
Počet portů SFP28:
0,000000000
Popis HPE Networking Instant On Switch 5p Gigabit 1430 R8R44A

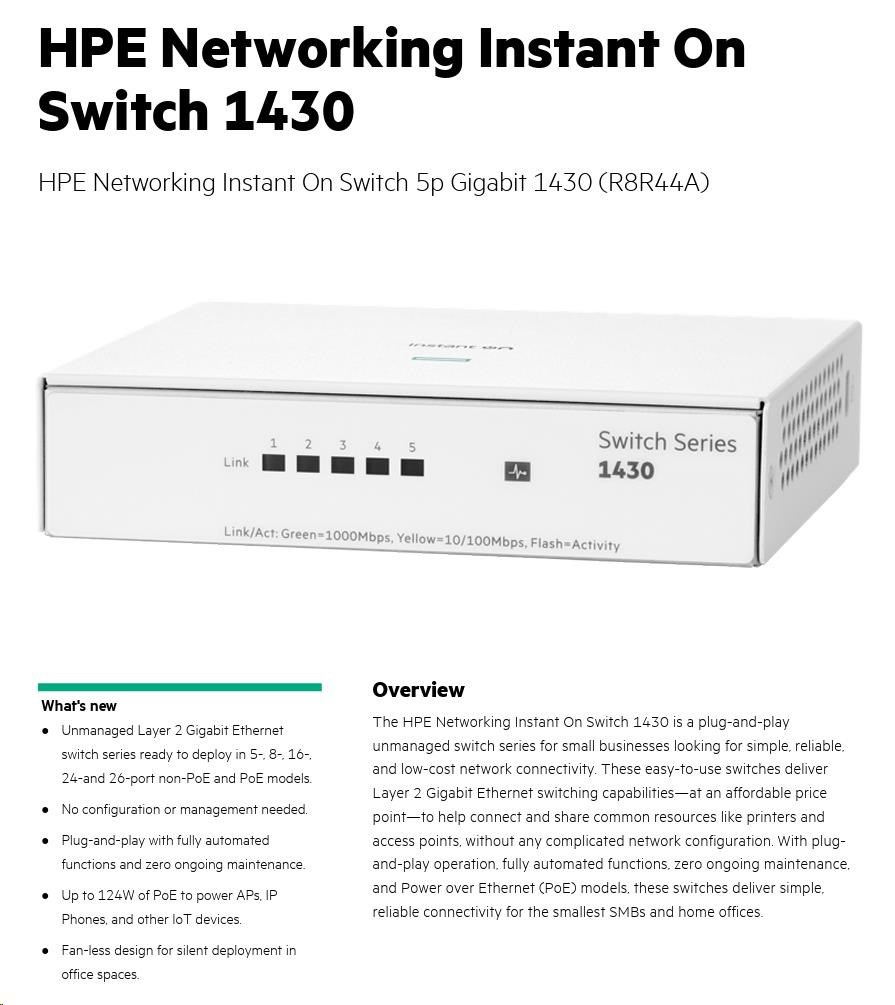

HPE Networking Instant On Switch 5p Gigabit 1430 (R8R44A)

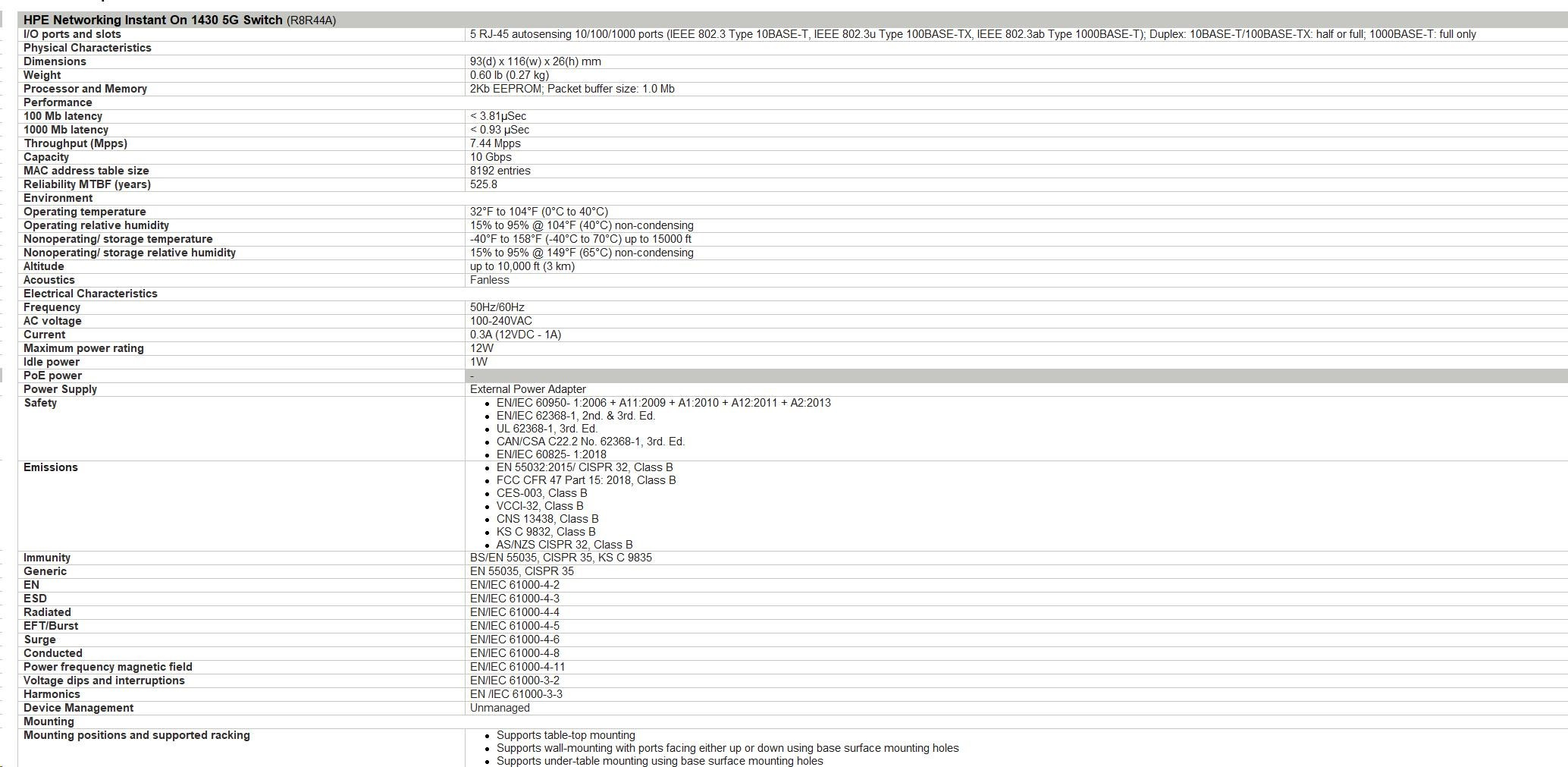

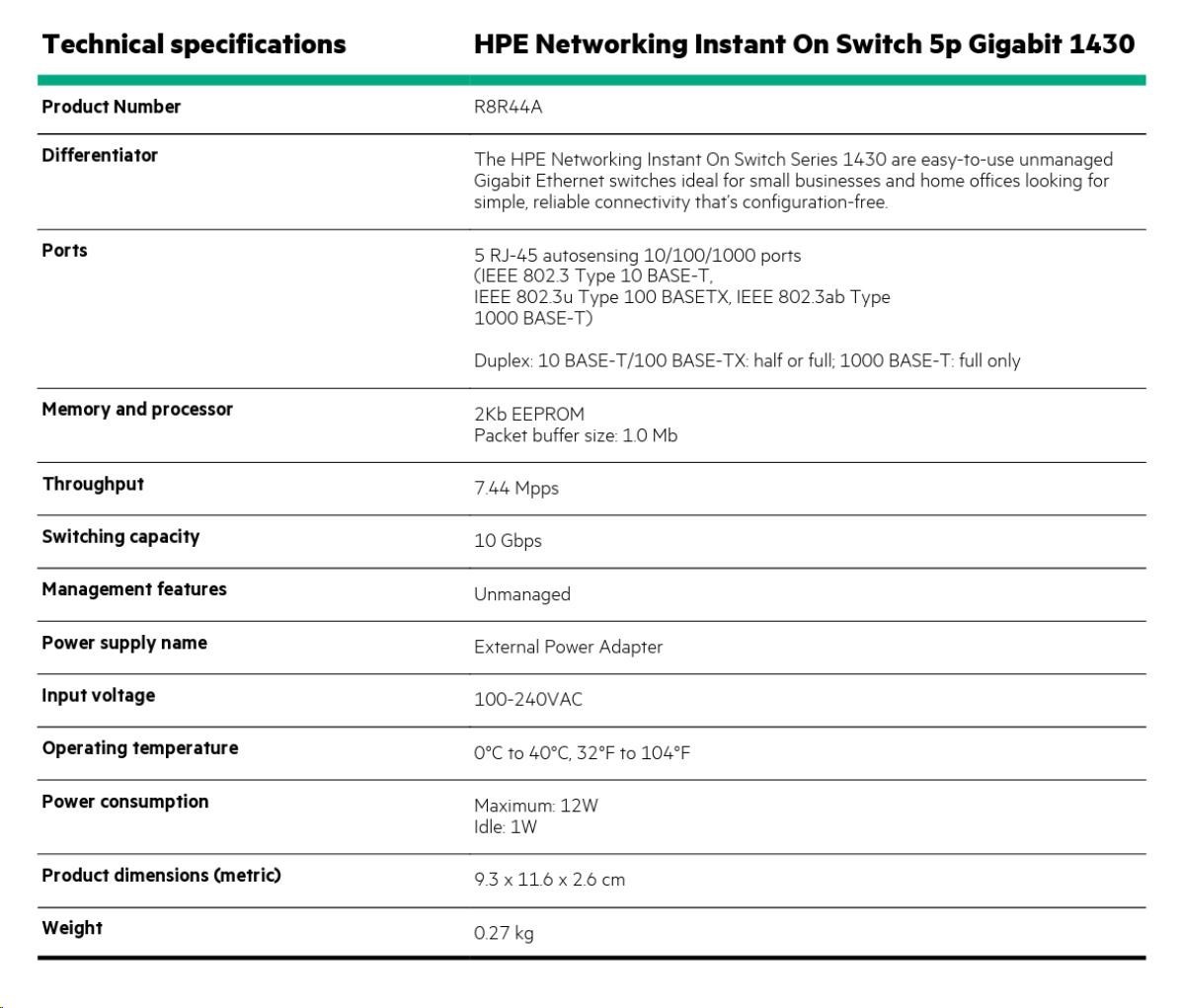

| Aruba Instant On 1430 5G Switch (R8R44A) | |
| I/O ports and slots | 5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Dimensions | 93(d) x 116(w) x 26(h) mm |
| Weight | 0.60 lb (0.27 kg) |
| Processor and Memory | 2Kb EEPROM; Packet buffer size: 1.0 Mb |
| Performance | |
| 100 Mb latency | < 3.81Î1Sec |
| 1000 Mb latency | < 0.93 Î1Sec |
| Throughput (Mpps) | 7.44 Mpps |
| Capacity | 10 Gbps |
| MAC address table size | 8192 entries |
| Reliability MTBF (years) | 525.8 |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics | Fanless |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-240VAC |
| Current | 0.3A (12VDC - 1A) |
| Maximum power rating | 12W |
| Idle power | 1W |
| PoE power | - |
| Power Supply | External Power Adapter |
| Safety |
|
| Emissions |
|
| Immunity | BS/EN 55035, CISPR 35, KS C 9835 |
| Generic | EN 55035, CISPR 35 |
| EN | EN/IEC 61000-4-2 |
| ESD | EN/IEC 61000-4-3 |
| Radiated | EN/IEC 61000-4-4 |
| EFT/Burst | EN/IEC 61000-4-5 |
| Surge | EN/IEC 61000-4-6 |
| Conducted | EN/IEC 61000-4-8 |
| Power frequency magnetic field | EN/IEC 61000-4-11 |
| Voltage dips and interruptions | EN/IEC 61000-3-2 |
| Harmonics | EN /IEC 61000-3-3 |
| Device Management | Unmanaged |
| Mounting | |
| Mounting positions and supported racking |
|
.
