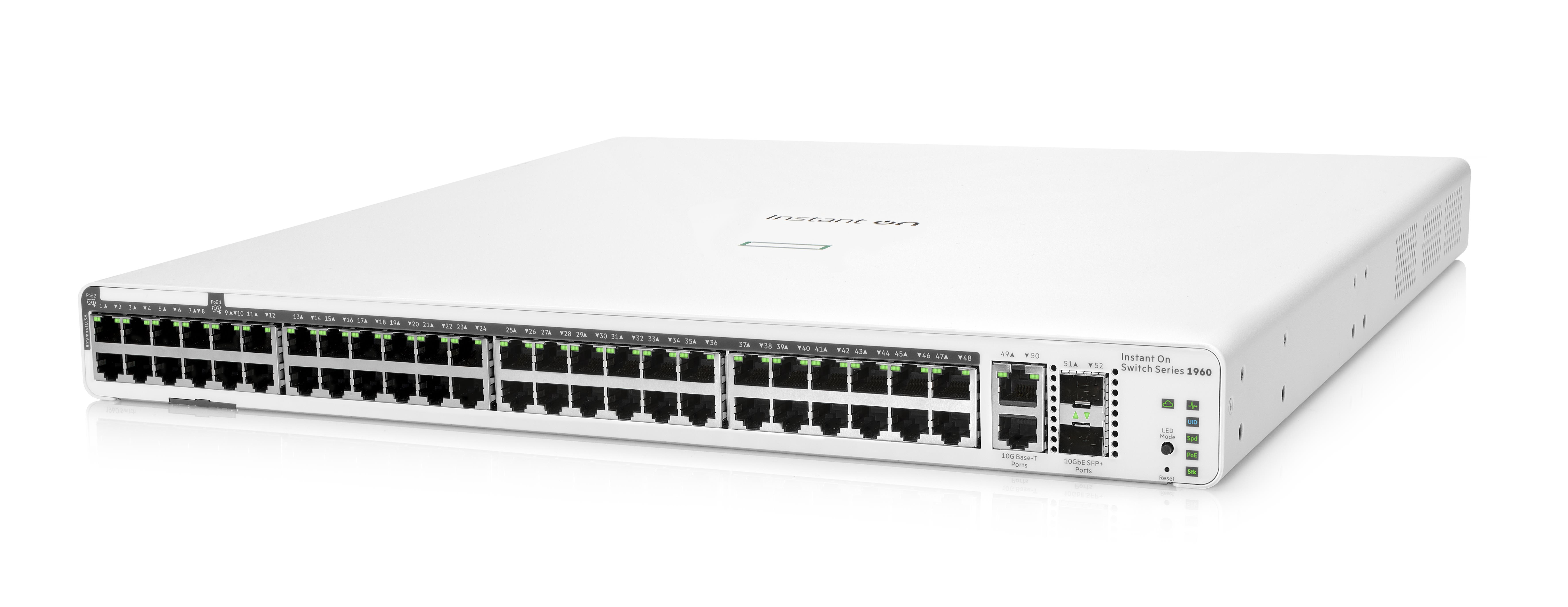

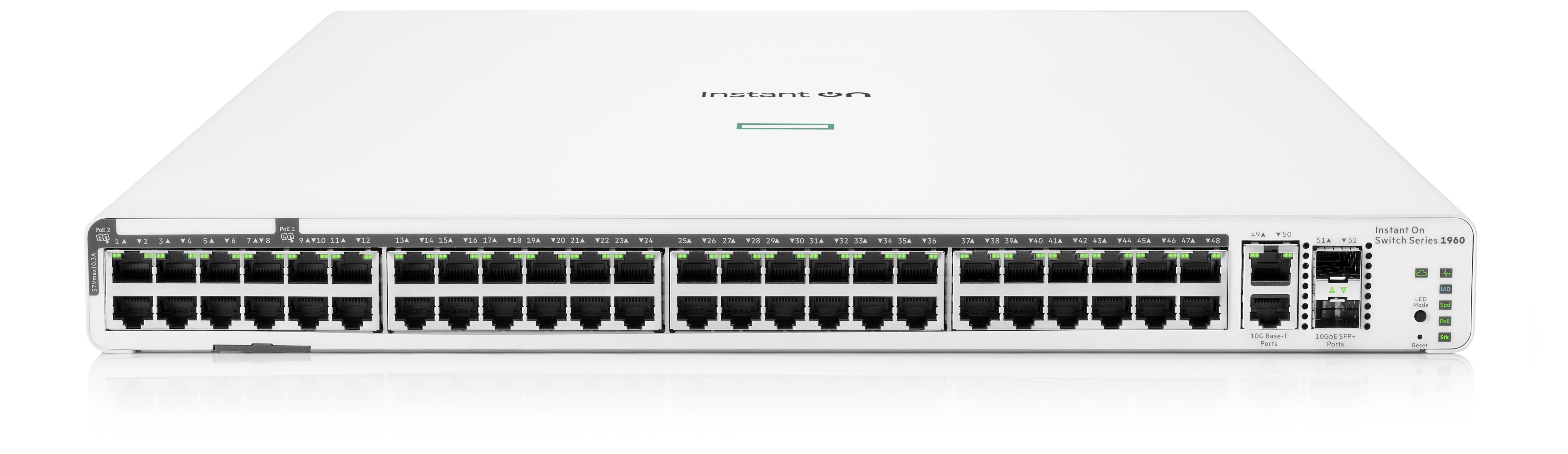

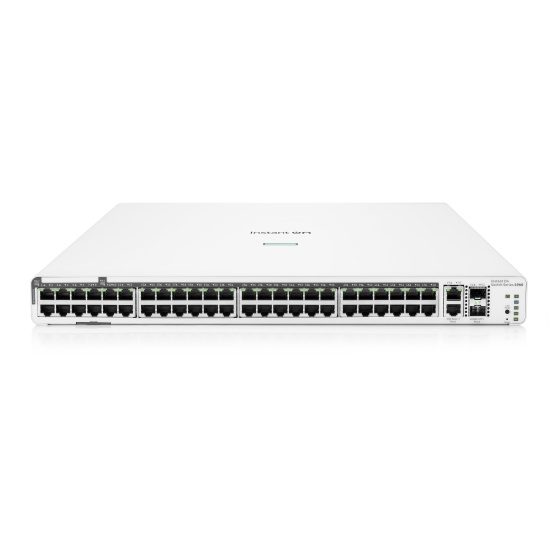

HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 (JL809A)
Kód: 713967Skladem
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, Stohovatelnost, L2, Web management/Smart switch, VPN; Technologie:Gigabit Ethernet + 10 GbE porty, Gigabit Ethernet 1000Mbps, Gigabit ethernet + 10 Gigabit optika, Gigabit optika; Počet portů LAN:48.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
713967
EAN:
190017522937
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
48
Technologie:
Gigabit Ethernet + 10 GbE porty, Gigabit ethernet + 10 Gigabit optika, Gigabit optika, Gigabit Ethernet 1000Mbps
Vlastnosti switche:
Rozšiřitelnost
Provedení:
Rack mounted 19"
PoE budget (W):
600
Přenosová rychlost LAN (Mb/s):
95
Funkce:
VLAN (virtual local area network), L2, Stohovatelnost, DHCP snooping, PoE (Power over ethernet), VPN, Web management/Smart switch
Počet SFP portů:
2
Počet SFP+ portů:
2
Podporované standardy PoE:
802.3af, 802.3at, 802.3bt
Počet portů LAN:
48
Maximální počet portů:
48
PoE budget (W):
600
Popis HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 (JL809A)

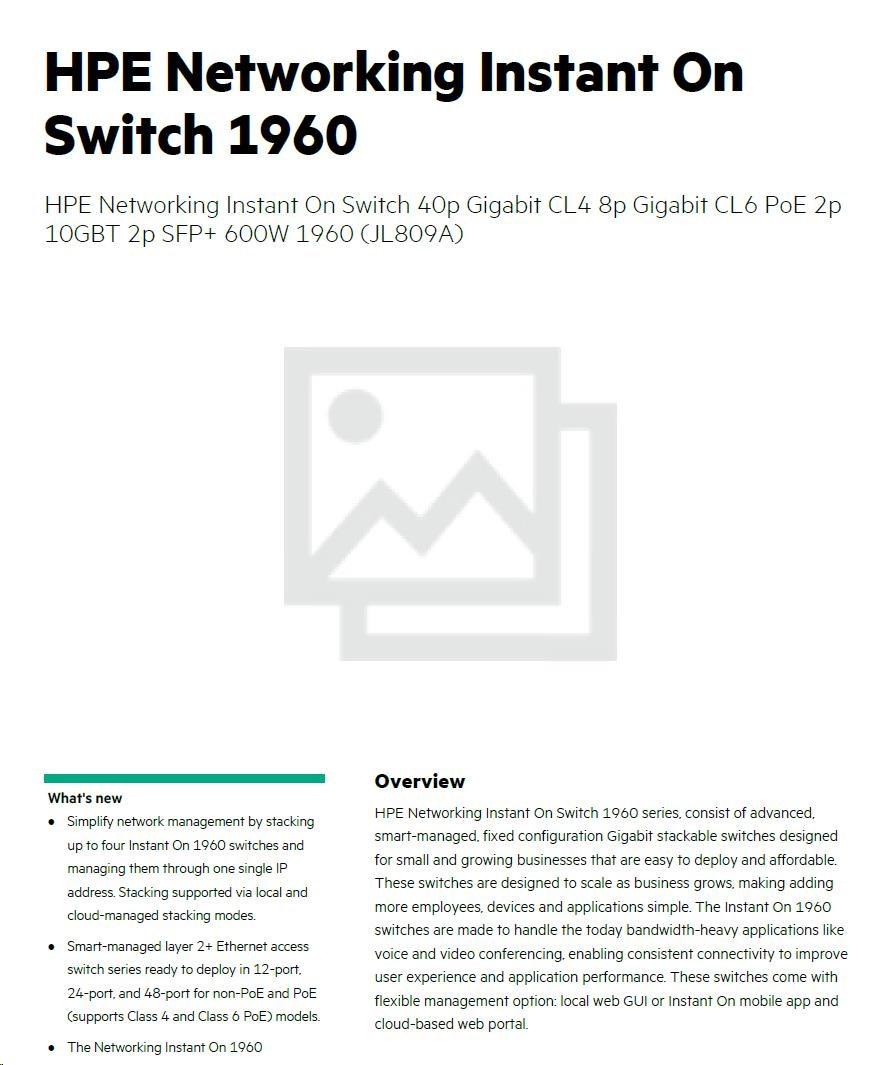

HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 (JL809A)
| I/O ports and slots | 12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports |
| Dimensions | 350.5(d) x 442.5(w) x 43.95(h) mm |
| Weight | 9.6 lb (4.3 kg) |
| CPU | Single Core ARMv7 Cortex-A9 @2Ghz |
| 100 Mb Latency | < 7.4 uSec |
| 1000 Mb Latency | < 4.2 uSec |
| 10000 Mb Latency | < 1.1 uSec |
| Throughput (Mpps) | 238 Mpps |
| Capacity | 320 Gbps |
| Routing Table size (# of static entries) | 512 IPv4/IPv6 |
| MAC Address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 88.8 |
| Operating temperature | 0-40°C, 0-10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics1 | LWAd = 4.0 Bel |
| Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) | |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200-240VAC |
| Current | 1.3A/0.4A |
| Maximum power rating | 100-127V: 130W 200-220V: 160W |
| Idle power | 100-127V: 60W 200-220V: 80W |
| PoE power | - |
| Power Supply | Internal power supply |
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
| Emissions | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 |
| ESD | EN/IEC 61000-4-2 |
| Radiated | EN/IEC 61000-4-3 |
| EFT/Burst | EN/IEC 61000-4-4 |
| Surge | EN/IEC 61000-4-5 |
| Conducted | EN/IEC 61000-4-6 |
| Power frequency magnetic field | EN/IEC 61000-4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000-3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
| Mounting Positions and Supported Racking |
|
| Transceivers |
|
.
