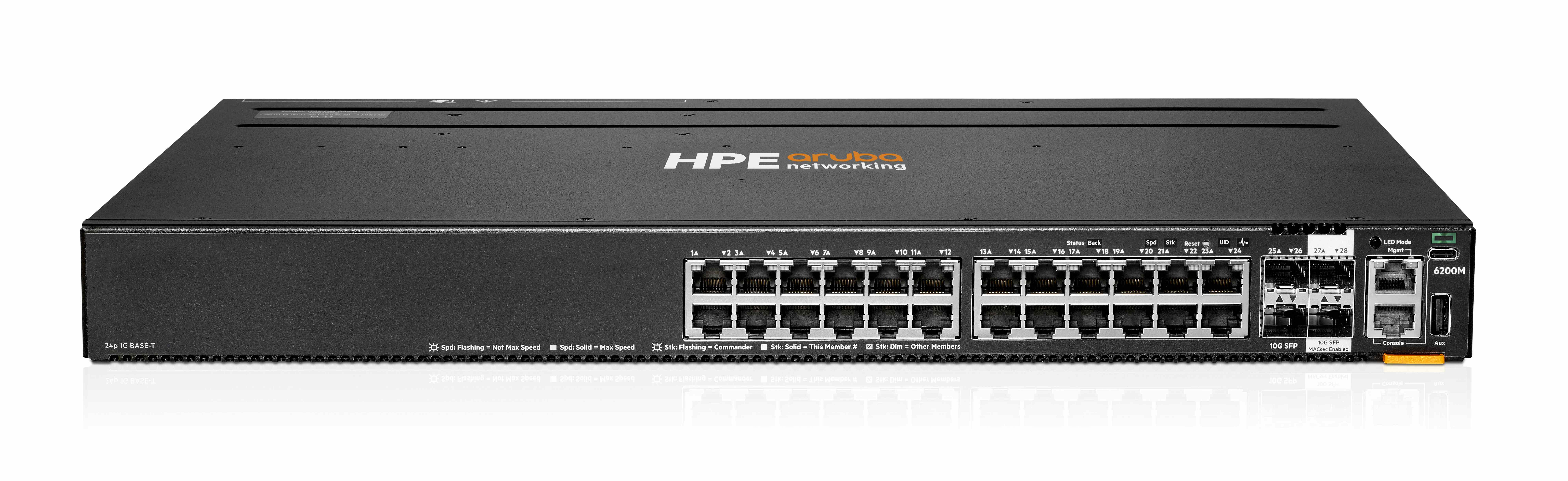

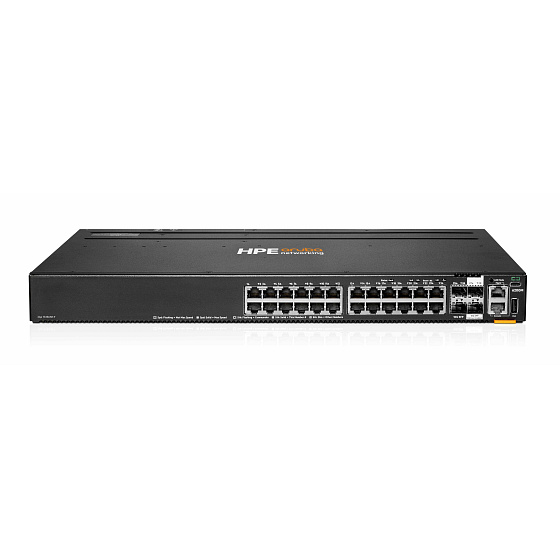

HPE Aruba Networking CX 6200M 24G 4SFP+ Switch
Kód: 726428Na dotaz
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping; Technologie:Gigabit Ethernet + 10 GbE porty; Počet portů LAN:44; Počet portů LAN:44; Přenosová rychlost LAN (Mb/s):131; Přenosová rychlost LAN (Mb/s):131; Podporované standardy PoE:802.3at; PoE budget (W):382.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
726428
Záruka:
24 Doživotní
Maximální počet portů:
28
Technologie:
Gigabit Ethernet + 10 GbE porty
Management:
SNMP/RMON
Vlastnosti switche:
Funkce POE po portech
Provedení:
Rack mounted 19"
PoE budget (W):
60
Přenosová rychlost LAN (Mb/s):
130
Funkce:
QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping
Počet SFP portů:
4
Počet PoE Out portů:
6
Počet SFP+ portů:
4
Podporované standardy PoE:
802.3at
Počet portů LAN:
44
Ventilátor:
Ano
Přenosová rychlost LAN (Mb/s):
131
PoE budget (W):
382
Počet portů LAN:
44
Přenosová rychlost LAN (Mb/s):
131
Maximální počet portů:
28
Počet PoE Out portů:
6
Počet SFP portů:
4
Počet SFP+ portů:
4
PoE budget (W):
60
Počet USB 2.0:
1
Počet USB 2.0:
1
Popis HPE Aruba Networking CX 6200M 24G 4SFP+ Switch
HPE Aruba Networking CX 6200M 24G 4SFP+ Switch
HPE Aruba Networking 6200M 24G 4SFP+ Switch
Must Select PSU Min1 / Max2 (250W JL085A)
Includes 1 Fan tray (JL669B), with 1 open slot with blank cover
Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver
1U - Heightmounting only. 2-post rack kit included.
| HPE Aruba Networking 6200M 24G 4SFP+ Switch (R8Q67A) | |
| Specifications | |
| Description | 24x ports 10/100/1000BASE-T Ports |
| Power supplies | 2 field-replaceable, hotswappable power supply slots |
| Fans |
|
| Physical characteristics | |
| Dimensions | (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2") |
| Configuration Weight | 5.59 kg (12.32 lbs) |
| Additional Specifications | |
| CPU | Quad Core ARM CortexTM A72 @ 1.8GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet Buffer | 6 MB Packet Buffer Memory |
| Performance | |
| Model Switching Capacity | 128 Gbps |
| Model Throughput Capacity | Up to 95.2 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1Gbps: 3.6µSec 10Gbps: 2.9µSec |
| Stack Size | 8 members (with other 24/48p 6200F and 6200M switches only; No stacking support with 12p 6200F switches) |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Stacking Bandwidth | 40 Gbps |
| Switched Virtual Interfaces (dual stack) | 256 |
| IPv4 Host Table (ARP) | 8,000 |
| IPv6 Host Table (ND) | 8,000 |
| IPv4 Unicast Routes | 2,000 |
| IPv6 Unicast Routes | 2,000 |
| MAC Table Capacity | 32,768 |
| IGMP Groups | 1,000 |
| MLD Groups | 1,000 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 1,000/1,000/1,000 |
| IPv4/IPv6/MAC ACL Entries (egress) | 512/256/512 |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time. |
| Operating Relative Humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10,000 feet (3.048 km) Max |
| Max Non-Operating Altitude | 15,000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 4.5 Bel Sound Pressure, LpAm (Bystander) = 29.1 dB |
| Primary Airflow | Front and side to back |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC Voltage | JL085A PSU: 100V-240V |
| Current | JL085A PSU: 3A/1.2A |
| 80plus.org Certification | JL085A PSU: 80plus Gold |
| Maximum heat dissipation BTU/hr and kj/hr info needed | 164 BTU/hr 173 kj/hr |
| Power Consumption (230 VAC) | With JL085A PSU: Idle: 56W 100% Traffic Rate: 75W |
| Safety | Europe: EN 62368-1:2014+A11:2017 EN 62368-1:2020+A11:2020 UK: BS EN 62368-1:2014 + A11:2017 2nd Ed BS EN 62368-1:2020 + A11:2020 3rd Ed UL 62368-1, 3rd Ed., CAN/CSA C22.2 No. 62368-1:19, 3rd Ed. IEC 62368-1:2014 2nd Ed. IEC 62368-1: 2018 3rd Ed. CNS-15598-1:2020 GB 4943.1:2022 |
| Emissions | Europe: EN 55032:2015 +A11:2020, Class A EN 61000-3-2:2019 EN 61000-3-3:2013 FCC 47 CFR part 15B: Class A ICES-003 Issue 7: 2020, Class A VCCI-CISPR 32, Class A CISPR 32: 2016, Class A AS/NZS CISPR 32: 2015, Class A GB/T 9254.1-2021, Class A CNS 15936: 2020, Class A KS C 9832 |
| Lasers | EN 60825-1:2014 / IEC 60825-1:2014 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 35: 2016 |
| EN | EN 55035:2017 +A11:2020 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC 61000-3-2, EN 61000-3-2 |
| Flicker | IEC 61000-3-3, EN 61000-3-3 |
| RoHS | EN 63000:2018 / IEC 63000:2018 |
| Mounting and Enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
.
