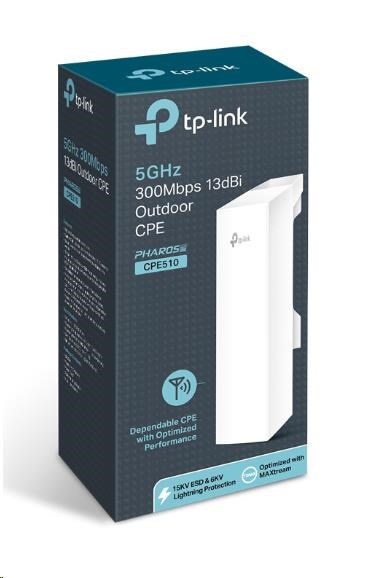

TP-Link CPE510 venkovní CPE (5GHz, 300Mb/s, 26dBi, 1x100Mb/s, 1xPoE)

Name: TP-Link CPE510 venkovní CPE (5GHz, 300Mb/s, 26dBi, 1x100Mb/s, 1xPoE)
Brand: TP-link
SKU: 438069
Price: 1601 CZK
Availability: OutOfStock

Kód: 438069

Na dotaz

Termín a způsob doručení

TP-link

Typ aktivního prvku:AP (Access Point), Bridge, Extender, Repeater, Klient, Venkovní jednotky; Frekvenční pásmo (GHz):5; Podporované standardy:802.11a, 802.11a/n, 802.11n; Zabezpečení:WEP 64bit, WEP 128bit, WPA, WPA2, WPA-PSK, WPA2-PSK; Typ antény:Vestavěná; Použití:Venkovní; Typy PoE:PoE - In; Počet portů LAN:2.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

438069

EAN:

6935364070922

Záruka:

36 Měsíc(ů)

Stav:

Typ aktivního prvku:

Extender

Frekvenční pásmo (GHz):

Připojení externí antény:

Podporované standardy:

802.11a

USB port:

Další vlastnosti:

PoE (Power over ethernet)

Slot na SIM kartu:

Použití:

Venkovní

Zabezpečení:

WPA2-PSK

Typ antény:

Vestavěná

Typy PoE:

PoE - In

Počet portů LAN:

2,000000000

Popis TP-Link CPE510 venkovní CPE (5GHz, 300Mb/s, 26dBi, 1x100Mb/s, 1xPoE)

Naposledy navštívené produkty

TP-Link CPE510 venkovní CPE (5GHz, 300Mb/s, 26dBi, 1x100Mb/s, 1xPoE)

Zavolejte nám

Nebo nám napište na

HARDWARE FEATURES
Processor	Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM, 8MB Flash

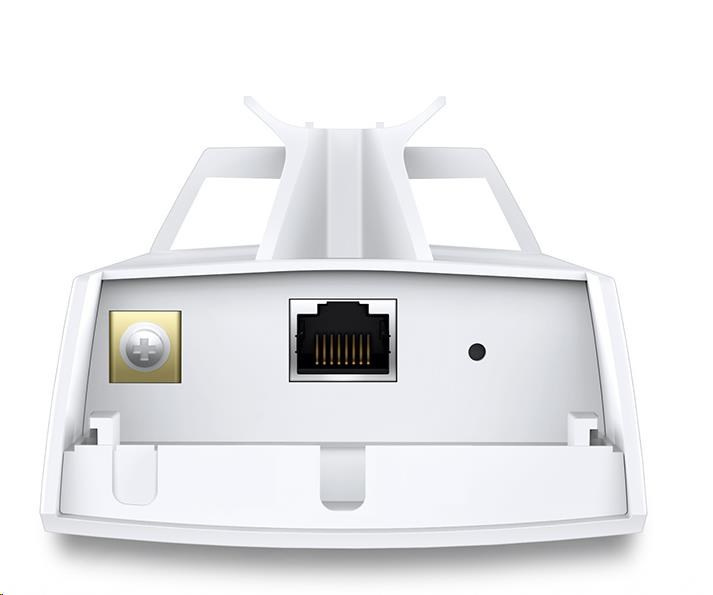

Interface	1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption	9.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )	224 x 79 x 60 mm
Antenna Type	Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 45° (E-Plane) Note: For more details, please refer to datasheet
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Outdoor ASA stabilized plastic material IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power	26dBm/398mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations	Pharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H)	1105733.5mm
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>80%
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification	CE, FCC, RoHS, IPX5
Package Contents	Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -40°C~70°C (-40°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

TP-Link CPE510 venkovní CPE (5GHz, 300Mb/s, 26dBi, 1x100Mb/s, 1xPoE)

TP-Link CPE510

Venkovní CPE 5 GHz 300 Mbit/s 13 dBi
