TP-Link EAP725-Wall OMADA WiFi7 AP (BE3600,2,4GHz/5GHz,1x2,5GbEWAN,1x2,5GbELAN,3xGbE,1xPoE+,1xPoE-out)
Kód: 324320Na dotaz
Termín a způsob doručení
Typ aktivního prvku:AP (Access Point), MU-MIMO; Frekvenční pásmo (GHz):2,4, 5, 2,4 + 5 (Dual Band), 6; Podporované standardy:802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11g, 802.11a/n, 802.11n, 802.11ac, 802.11be; Zabezpečení:WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3; Typ antény:Integrovaná; Použití:Vnitřní.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324320
EAN:
8885020626353
Záruka:
60 Měsíc(ů)
Typ aktivního prvku:
AP (Access Point), MU-MIMO
Frekvenční pásmo (GHz):
2,4 + 5 (Dual Band), 2,4, 5, 6
Připojení externí antény:
Ne
Podporované standardy:
802.11be, 802.11n, 802.11b, 802.11g, 802.11b/g, 802.11ac, 802.11a, 802.11ax, 802.11b/g/n, 802.11a/n
USB port:
Ne
Další vlastnosti:
QoS (Quality of Service), Podpora Wi-Fi Mesh, PoE (Power over ethernet), VLAN, Management
Slot na SIM kartu:
Ne
Počet portů LAN:
3
Použití:
Vnitřní
Zabezpečení:
WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA-PSK
Typ antény:
Integrovaná
Typy PoE:
PoE - In, PoE - Out, PoE - In + PoE - Out
Popis TP-Link EAP725-Wall OMADA WiFi7 AP (BE3600,2,4GHz/5GHz,1x2,5GbEWAN,1x2,5GbELAN,3xGbE,1xPoE+,1xPoE-out)

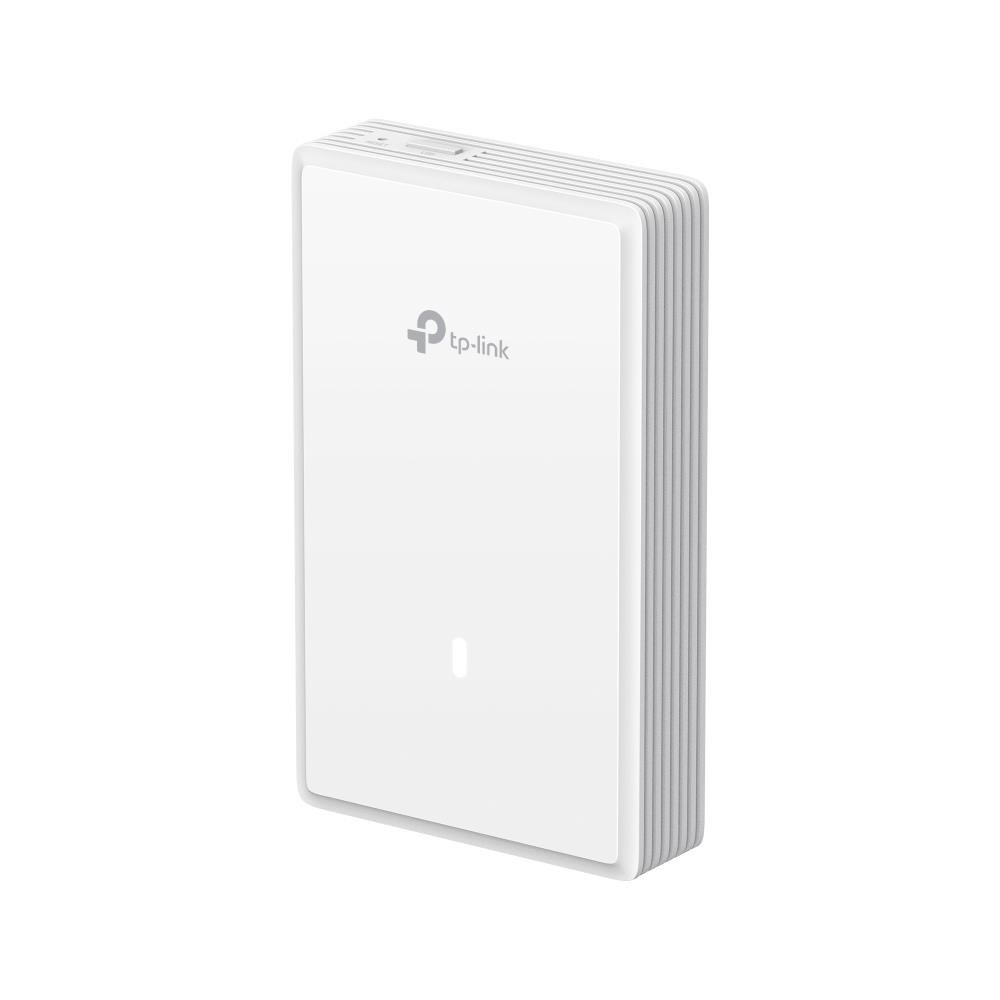

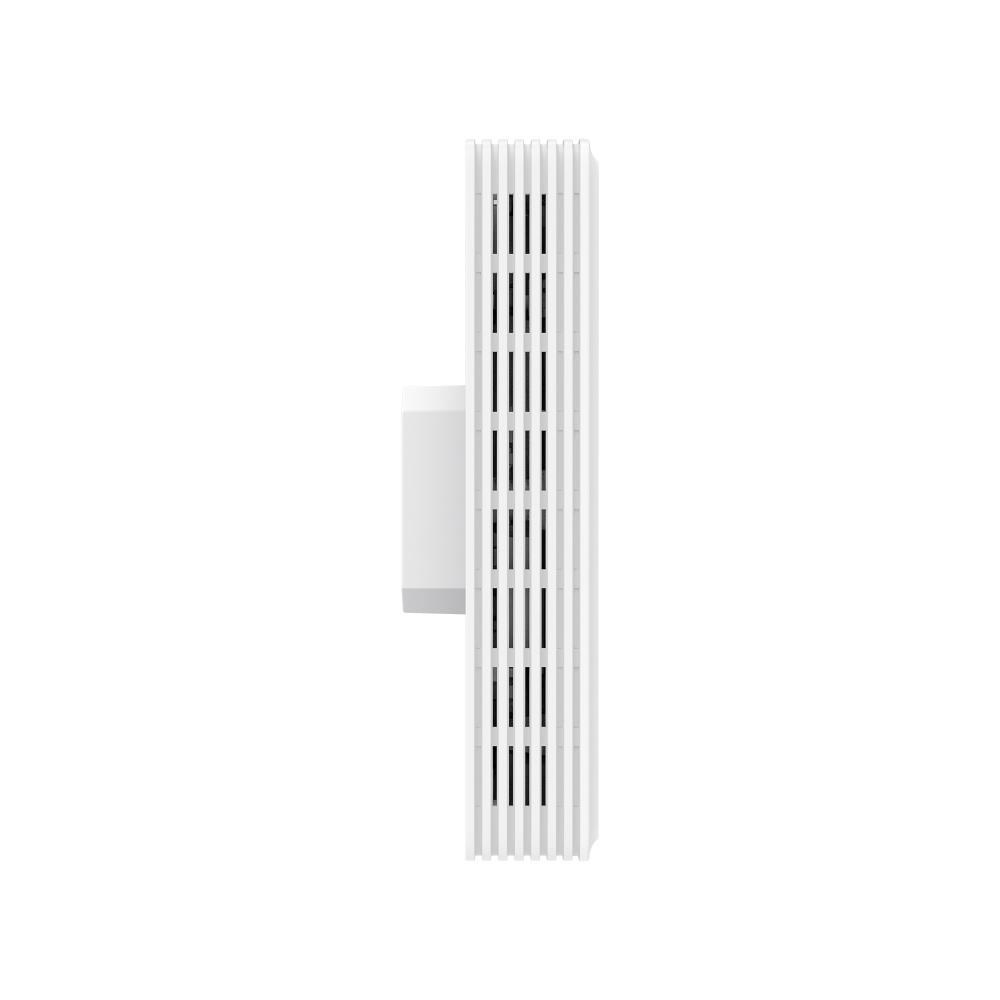

TP-Link OMADA EAP725-Wall
Nástěnný Wi-Fi 7 přístupový bod BE3600
- BE3600 Wi-Fi 7 (2882 Mb/s na 5 GHz + 688 Mb/s na 2,4 GHz).
- 1× 2.5G PoE vstupní port + 1× 2.5G průchozí port + 2× Gigabitové RJ45 sestupné porty.
- Šířka pásma 160 MHz umožňuje mnohem více simultánních přenosů.
- Multi-RUs zajišťují vysoký výkon vaší sítě.
- Pokročilé funkce: Centralizovaná správa, Mesh a plynulé roamingové připojení.
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-wifi-wall-plate/eap725-wall
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) |
| Dimensions | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 50 ?(600 ft2)** |
| Concurrent Clients | 250+§ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming? • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication? • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz, band 1 & band 2, EIRP) <25 dBm (5GHz, band 3, EIRP) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | • BE3600 Wall Plate Wi-Fi 7 Access Point • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
