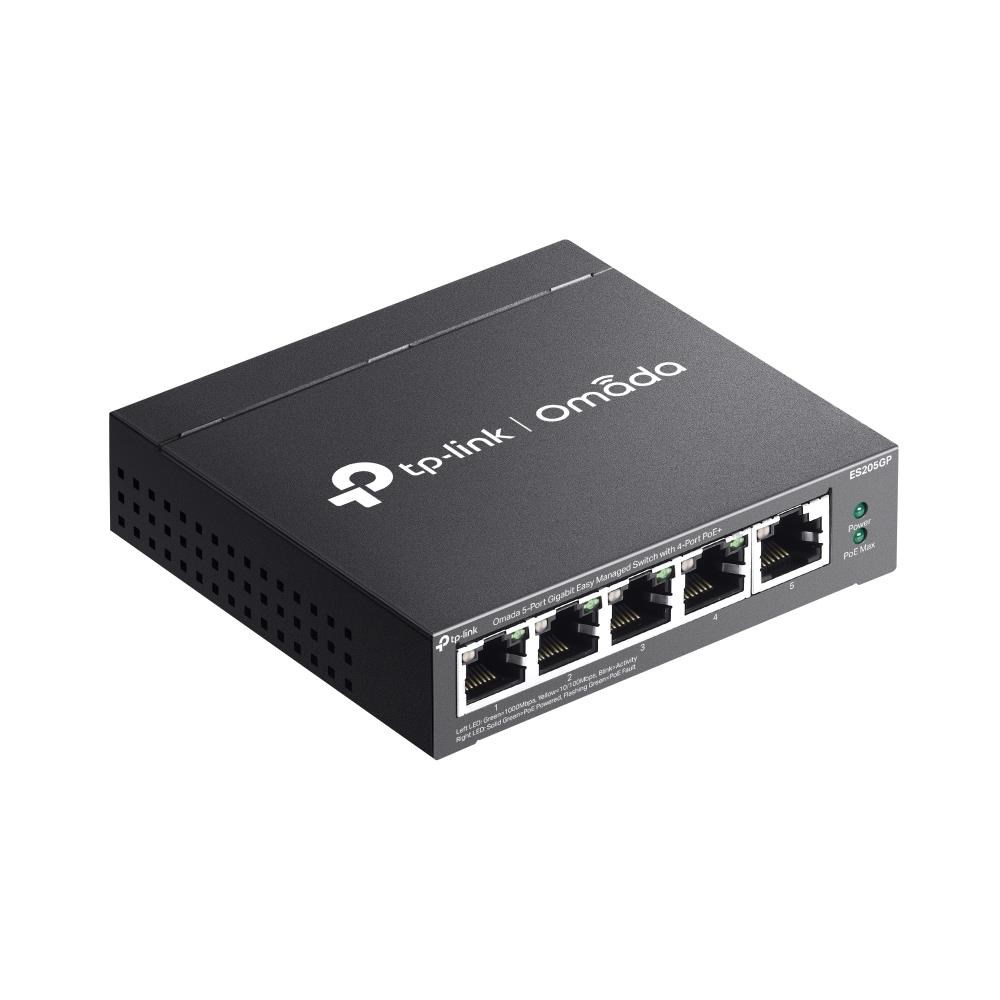

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

Name: TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)
Brand: TP-link
SKU: 324281
Price: 1501 CZK
Availability: InStock

Kód: 324281

Skladem

Termín a způsob doručení

TP-link

Provedení:Desktop; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:5; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):65; Maximální počet portů:5; Počet PoE+ portů:4; Management:Web.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

324281

EAN:

8885020620931

Záruka:

60 Měsíc(ů)

Stav:

Technologie:

Gigabit Ethernet 1000Mbps

Management:

Web

Provedení:

Desktop

Funkce:

PoE (Power over ethernet), QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, Web management/Smart switch

Podporované standardy PoE:

802.3af, 802.3at

Ventilátor:

Počet portů LAN:

Maximální počet portů:

PoE budget (W):

Počet PoE+ portů:

Popis TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

Naposledy navštívené produkty

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

Zavolejte nám

Nebo nám napište na

HARDWARE FEATURES
Interface	• 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	?
Power Supply	DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65 W available for all PoE+ ports, 30W max per port • PoE Auto Recovery‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	3.9×3.9×1.0 in (100×98×25 mm)
PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
MANAGEMENT
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Contents	• ES205GP • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

TP-Link OMADA switch ES205GP

Omada 5portový gigabitový Easy Managed Switch se 4 porty PoE+
