TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)
Kód: 324418Skladem
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:26; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):384; Počet SFP portů:2.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324418
EAN:
1210002600989
Záruka:
60 Měsíc(ů)
Stav:
Technologie:
Gigabit ethernet + Gigabit optika, Gigabit Ethernet 1000Mbps
Management:
Web
Provedení:
Rack mounted 19"
Funkce:
PoE (Power over ethernet), QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, Web management/Smart switch
Podporované standardy PoE:
802.3af, 802.3at
Ventilátor:
Ano
Počet portů LAN:
26
Maximální počet portů:
28
Počet portů Combo:
2
Počet SFP portů:
2
PoE budget (W):
384
Počet PoE+ portů:
24
Popis TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

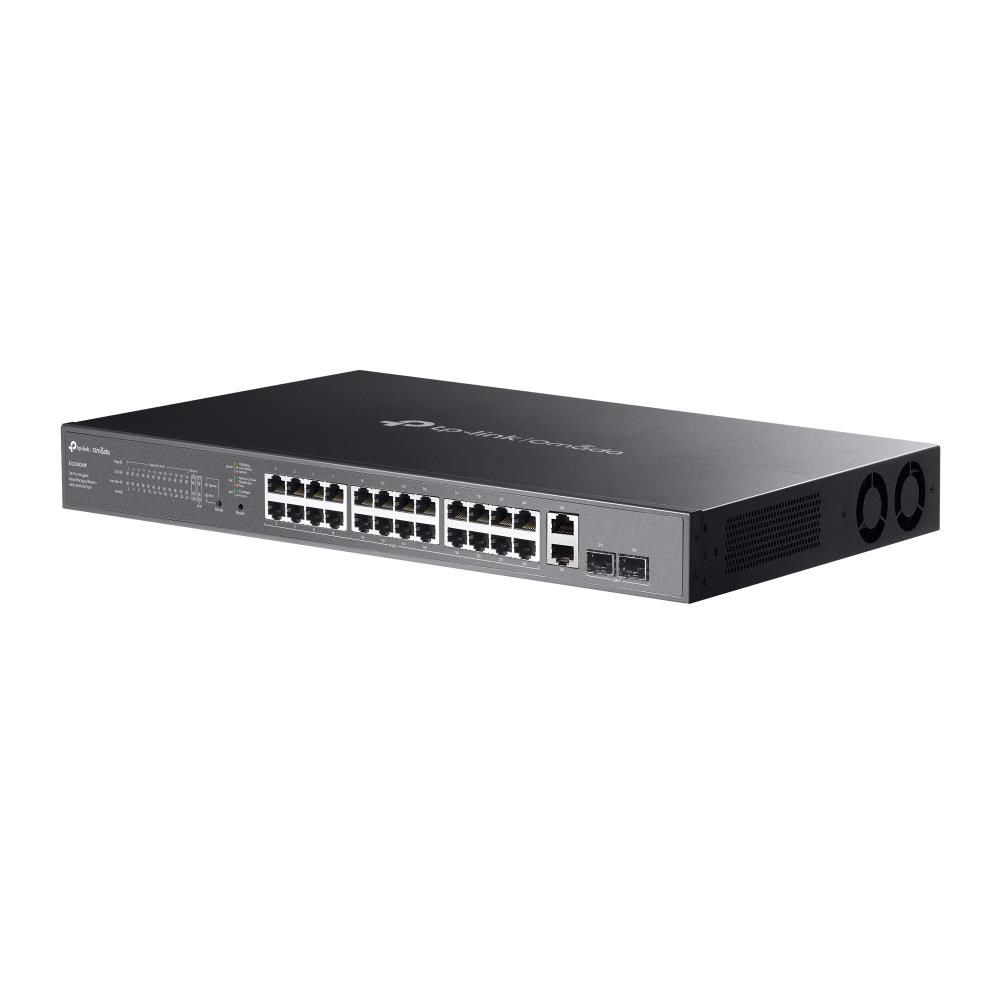

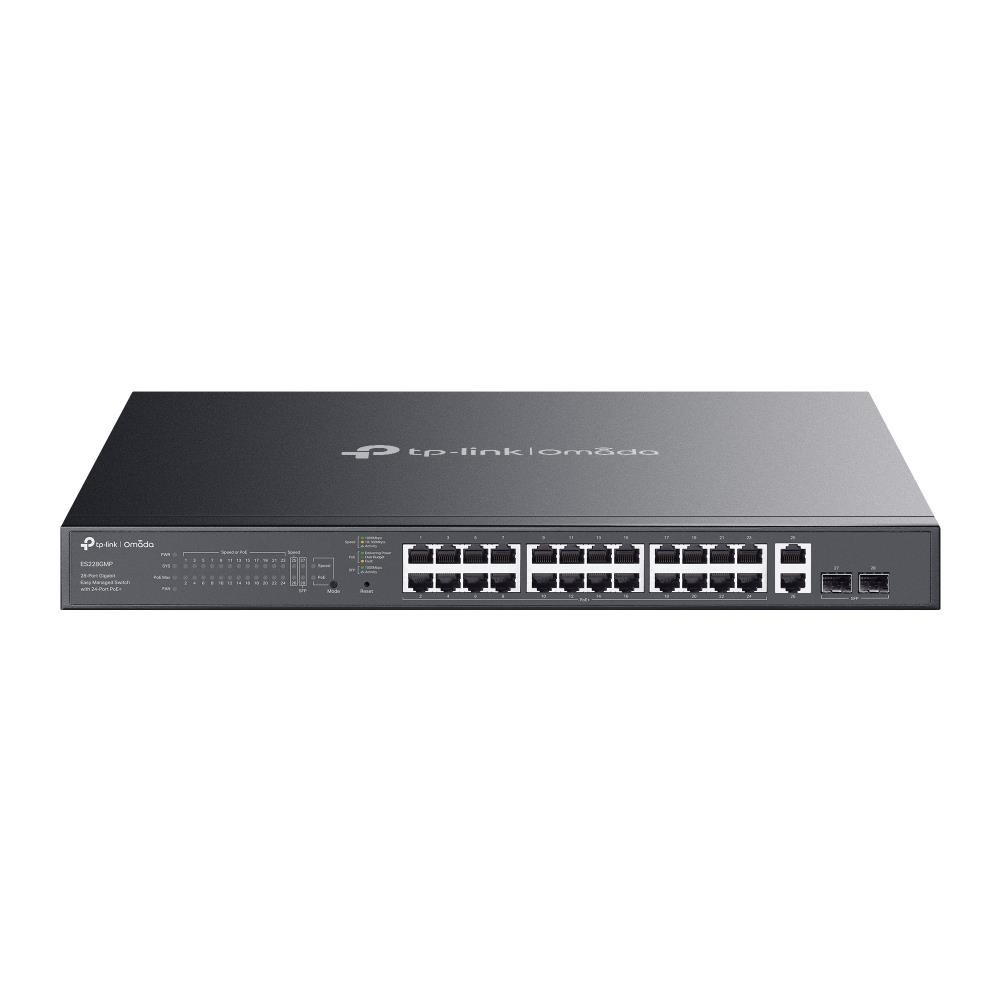

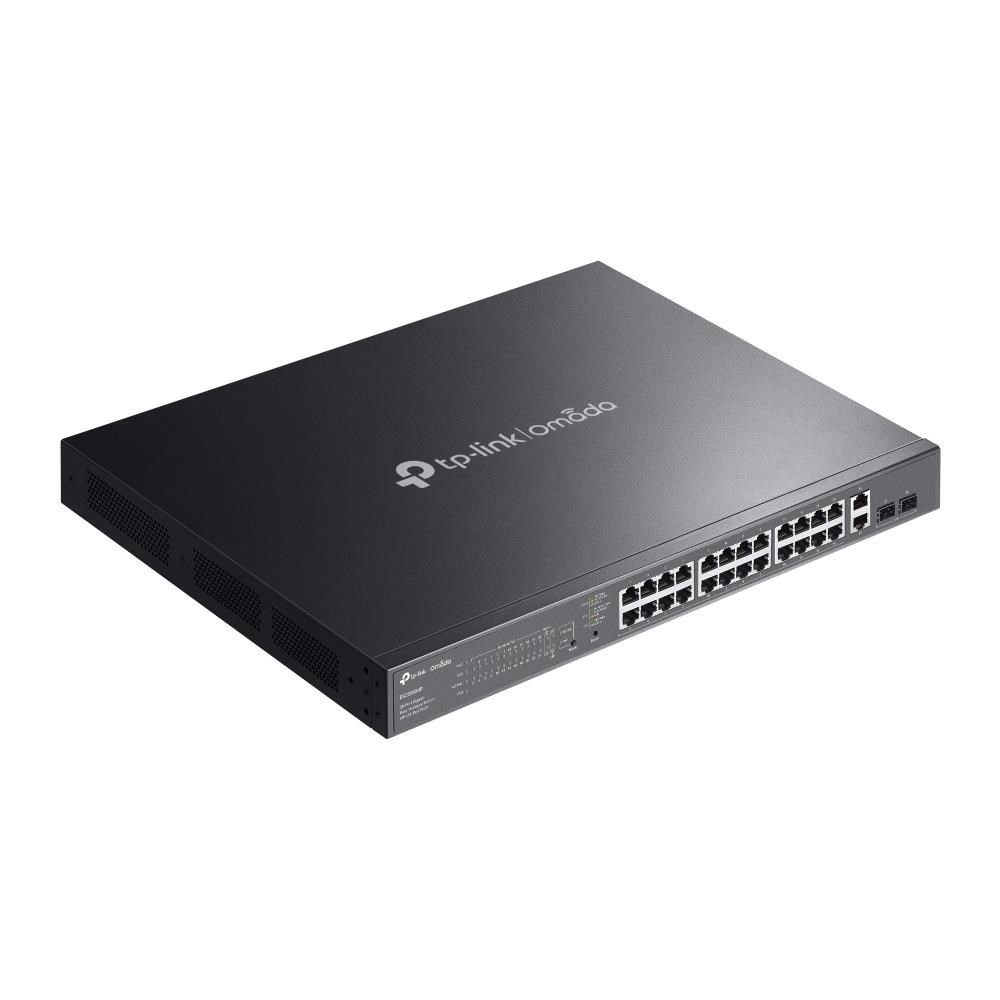

TP-Link OMADA switch ES228GMP
Omada 28-Port Gigabit Easy Managed Switch s 24-Porty PoE+
- 26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilní s 802.3af/at)
- 2× gigabitové SFP sloty
- Napájecí rozpočet 384 W, až 30 W na každý PoE port
- Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pro další funkce
- Centralizovaná cloudová správa přes web nebo aplikaci Omada†
- Až 250m PoE, QoS, automatické obnovení PoE a izolace portů pro spolehlivou dohledovou síť
- Automatická prevence smyček, VLAN a IGMP Snooping
- Odolné kovové provedení a možnost montáže do racku
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es228gmp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | Rackmountable |
| Physical Security Lock | ? |
| Power Supply | 100–240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 384W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES228GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5?~45? (23?~113?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
