-9%
Sleva

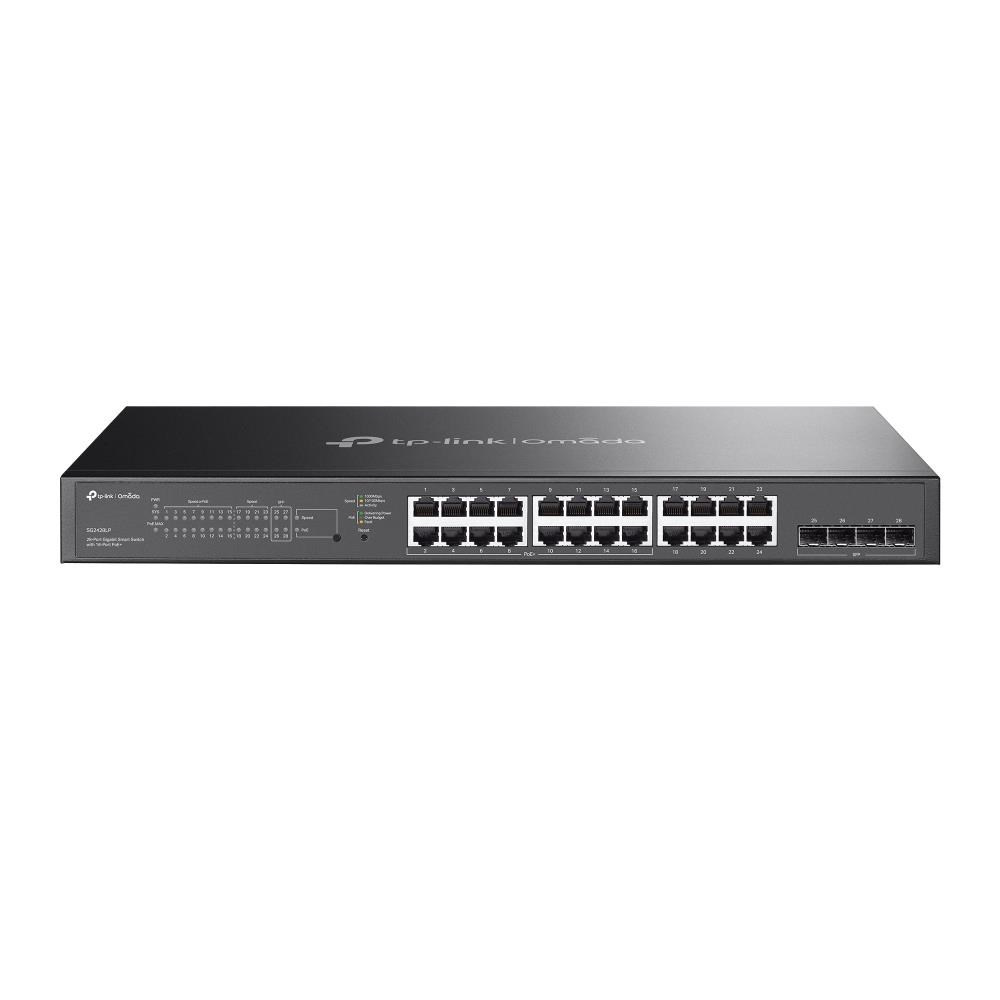

TP-Link OMADA switch SG2428LP (24xGbE,4xSFP,16xPoE+,150W,fanless)
Kód: 324255Skladem
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit ethernet + Gigabit optika; Počet portů LAN:24; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):150; Počet SFP portů:4; Maximální počet portů:28.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324255
EAN:
8885020620832
Záruka:
60 Měsíc(ů)
Technologie:
Gigabit ethernet + Gigabit optika
Management:
SNMP/RMON, Web
Vlastnosti switche:
Funkce POE po portech
Provedení:
Rack mounted 19"
Přenosová rychlost LAN (Mb/s):
1000
Funkce:
QoS (Quality of service), VLAN (virtual local area network), L2, DHCP snooping, Web management/Smart switch, PoE (Power over ethernet)
Podporované standardy PoE:
802.3af, 802.3at
Ventilátor:
Ne
Počet portů LAN:
24
Maximální počet portů:
28
Počet SFP portů:
4
PoE budget (W):
150
Počet PoE+ portů:
16
Popis TP-Link OMADA switch SG2428LP (24xGbE,4xSFP,16xPoE+,150W,fanless)
TP-Link OMADA switch SG2428LP
Omada 28portový gigabitový inteligentní switch s 32 porty PoE+
- 16× gigabitových portů 802.3af/at PoE+
- 8× gigabitových RJ45 portů bez PoE a 4× gigabitové SFP sloty
- Celkový rozpočet PoE 150 W s výkonem až 30 W na port*
- Centralizovaná cloudová správa přes web nebo aplikaci Omada
- Samostatná správa přes web, CLI, SNMP a RMON
- Statický routing pomáhá směrovat interní provoz pro vyšší efektivitu
- VLAN, ACL, QoS a IGMP Snooping
- Design bez ventilátoru pro tichý provoz
- Odolné kovové pouzdro a možnost montáže do racku
Zjistit více o technologii TP-Link PoE >
Zjistit více o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2428lp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
| Fan Quantity | Fanless |
| Physical Security Lock | ? |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port) • PoE Power Budget: 150 W* |
| Dimensions ( W x D x H ) | 17.3×8.7×1.73 in (440×220×44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 184.7 W (110V/60Hz) (with 150 W PD connected) |
| Max Heat Dissipation | 628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port/Flow-based Rating Limit • Smoother Performance • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† |
| VLAN | • VLAN Group: Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
| Security | • IP-MAC-Port Binding • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Radius authentication and accountability support • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SG2452LP • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
