-9% Sleva

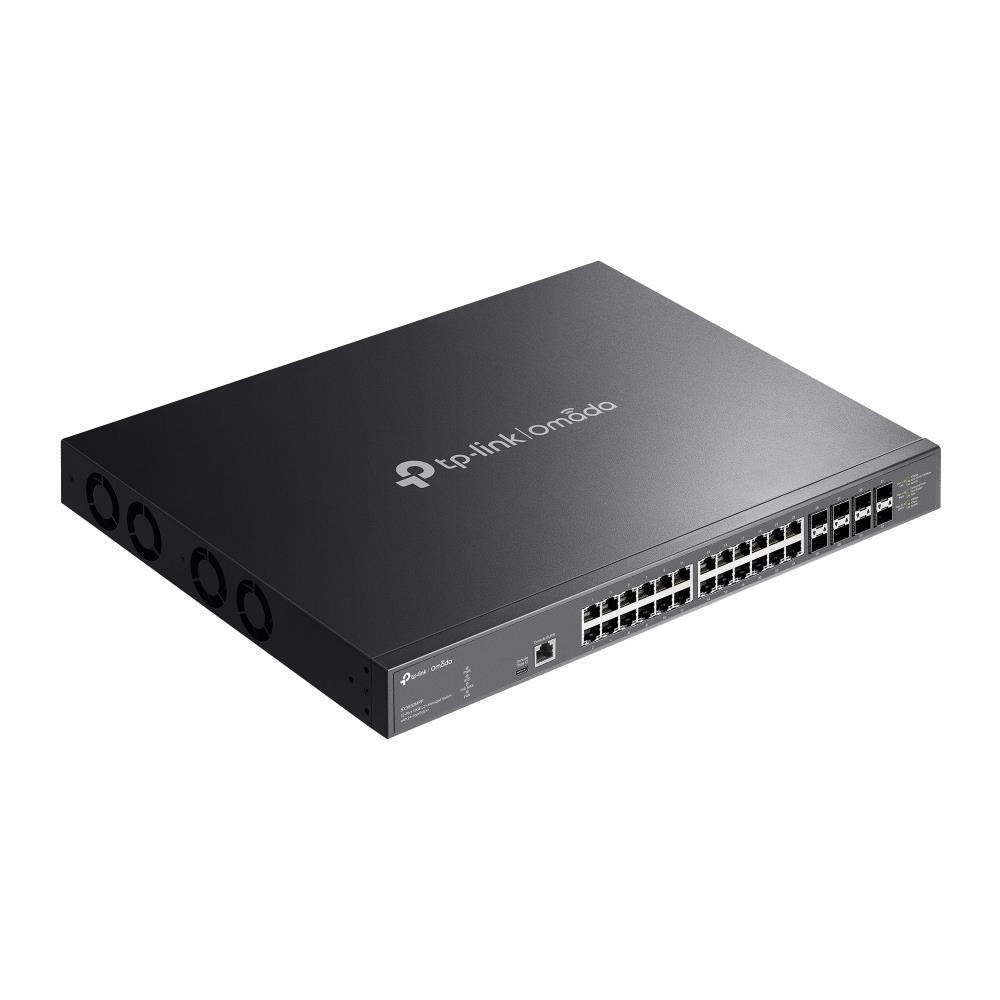

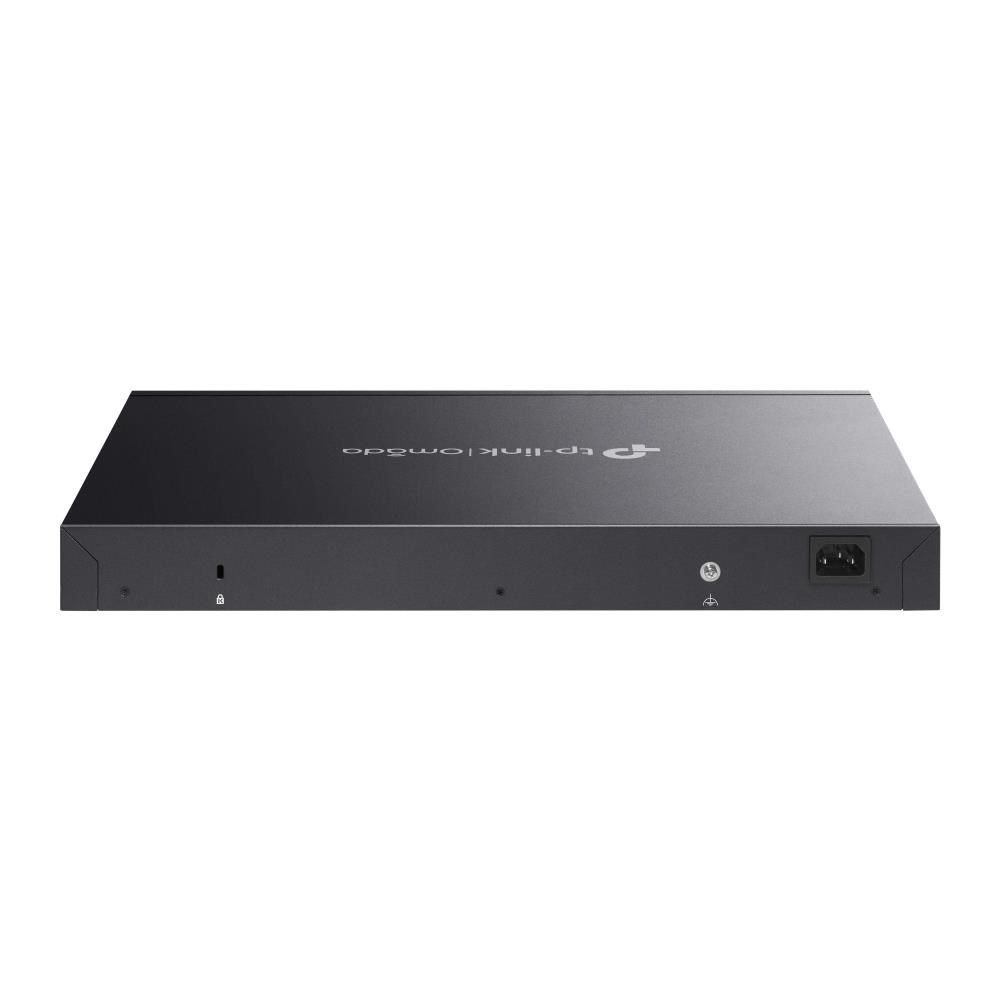

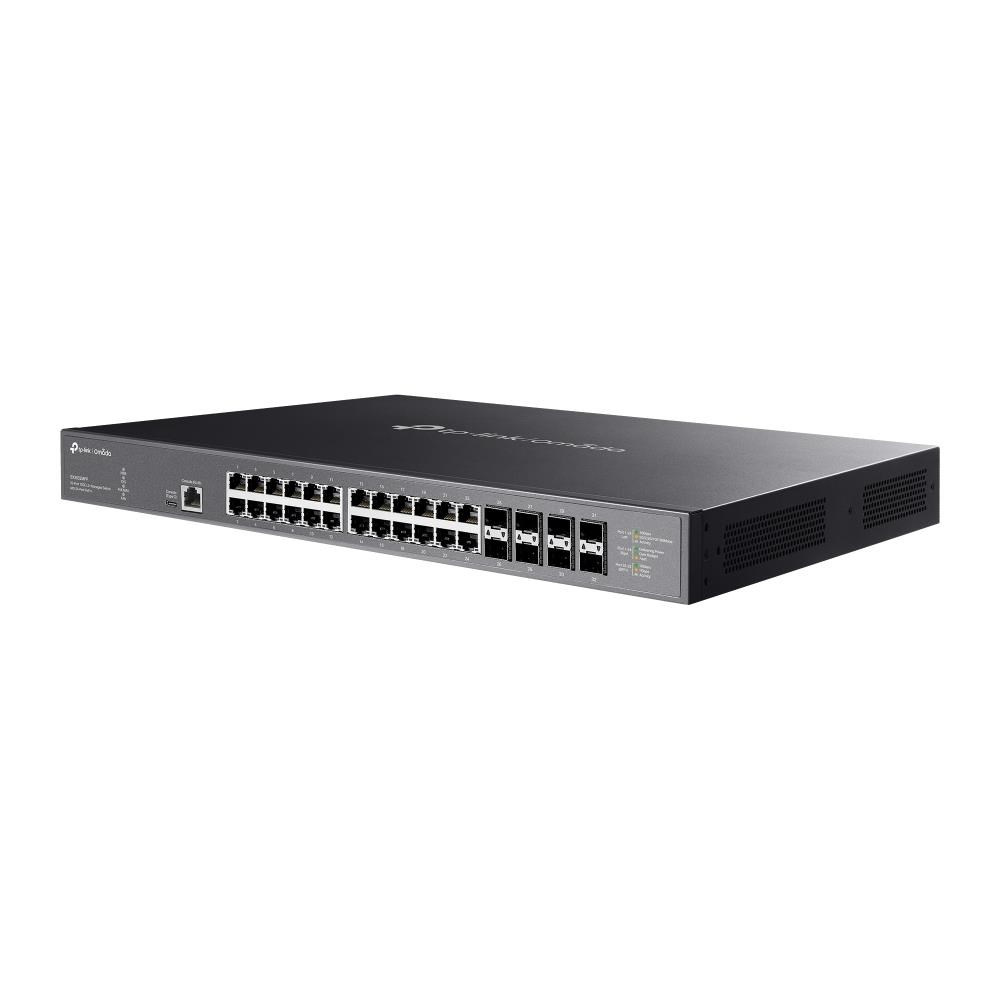

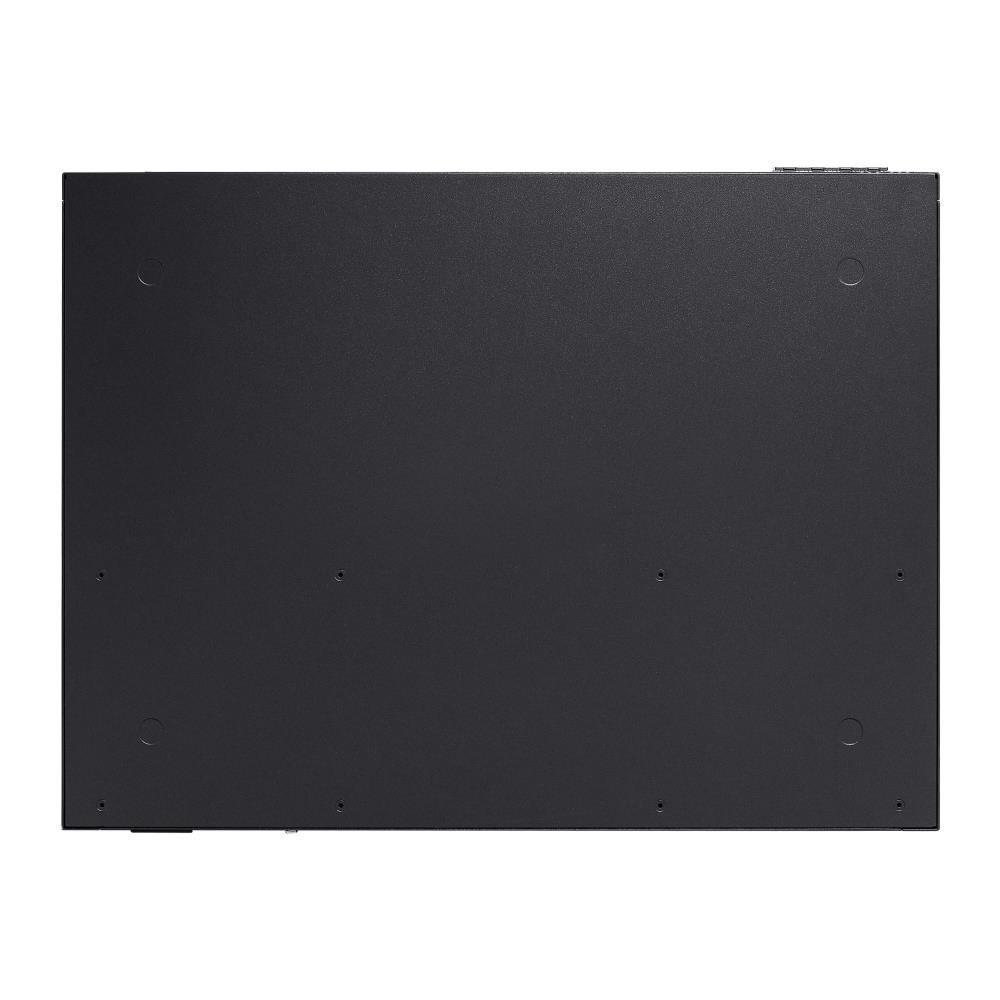

TP-Link OMADA switch SX3832MPP (24x10GbE,8xSFP+,24xPoE++,770W,1xconsole,1xUSB-C)

Name: TP-Link OMADA switch SX3832MPP (24x10GbE,8xSFP+,24xPoE++,770W,1xconsole,1xUSB-C)
Brand: TP-link
SKU: 324419
Price: 74001 CZK
Availability: InStock

Kód: 324419

Skladem

Termín a způsob doručení

TP-link

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, L2+, Web management/Smart switch; Technologie:10 Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:32; Přenosová rychlost LAN (Mb/s):10000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt; PoE budget (W):770.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

324419

EAN:

8885020622676

Záruka:

60 Měsíc(ů)

Stav:

Technologie:

10 Gigabit ethernet + 10 Gigabit optika

Management:

Web, SNMP/RMON

Vlastnosti switche:

Funkce POE po portech

Provedení:

Rack mounted 19"

Funkce:

QoS (Quality of service), VLAN (virtual local area network), L2, DHCP snooping, Web management/Smart switch, L2+, PoE (Power over ethernet)

Podporované standardy PoE:

802.3af, 802.3at, 802.3bt

Ventilátor:

Ano

Počet portů LAN:

Přenosová rychlost LAN (Mb/s):

10000

Maximální počet portů:

Počet PoE Out portů:

Počet SFP+ portů:

PoE budget (W):

770

Počet PoE++ portů:

Počet USB 2.0:

Popis TP-Link OMADA switch SX3832MPP (24x10GbE,8xSFP+,24xPoE++,770W,1xconsole,1xUSB-C)

Naposledy navštívené produkty

TP-Link OMADA switch SX3832MPP (24x10GbE,8xSFP+,24xPoE++,770W,1xconsole,1xUSB-C)

Zavolejte nám

Nebo nám napište na

HARDWARE FEATURES
Interface	• 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) • 8× 1/10G SFP+ Slots‡ • 1× RJ45 Console Port • 1× USB Type C Console Port
Fan Quantity	4
Physical Security Lock	?
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	• Standard: 802.3bt/at/af compliant • PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port** • Power Budget: 770 W*
Dimensions ( W x D x H )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Rack Mountable
Max. Power Consumption	1,010.2 W (110V/60Hz with 770 W PD connected) 953.7 W (220V/50Hz with 770 W PD connected)
Max. Heat Dissipation	3,444.7 BTU/hr (110V/60Hz with 770 W PD connected) 3,252.2 BTU/hr (220V/50Hz with 770 W PD connected)
PERFORMANCE
Switching Capacity	640 Gbps
Packet Forwarding Rate	240 Mpps
MAC Address Table	32 K
Packet Buffer Memory	24 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 510 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast	• Supports 4,000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM
VLAN	• VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 256 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 • Private VLAN • GVRP • VLAN VPN: VLAN Mapping, VLAN Replace • Voice VLAN
Access Control List	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN
Security	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 96 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 95 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • IEEE 802.3az Energy Efficient Ethernet (EEE) • Password Recovery • SNTP • System Log
OTHERS
Certification	CE, FCC, RoHS
Package Content	• SX3832MPP Switch • Power Cord • Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5–45 ? (23–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

TP-Link OMADA switch SX3832MPP (24x10GbE,8xSFP+,24xPoE++,770W,1xconsole,1xUSB-C)

TP-Link OMADA switch SX3832MPP

Omada 32portový managed switch 10GE L2+ s 24 porty PoE++
