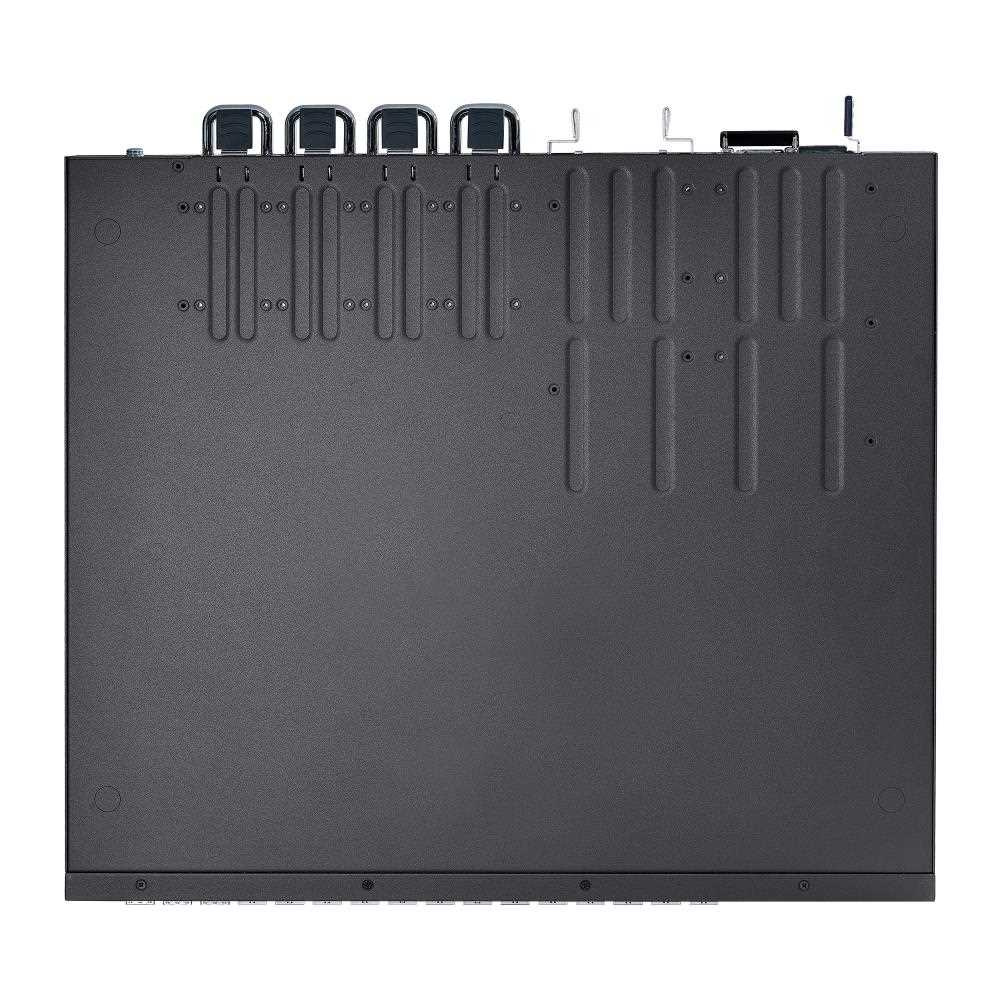

TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

Name: TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)
Brand: TP-link
SKU: 324178
Price: 111051 CZK
Availability: OutOfStock

Kód: 324178

Na dotaz

Termín a způsob doručení

TP-link

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, L2, L2+, L3, Web management/Smart switch; Technologie:10 Gigabit optika; Počet portů LAN:26; Přenosová rychlost LAN (Mb/s):10000; Počet SFP+ portů:26; Počet portů SFP28:5; Ventilátor; Maximální počet portů:32.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

324178

EAN:

4895252501315

Záruka:

60 Měsíc(ů)

Stav:

Technologie:

10 Gigabit optika

Management:

Web, SNMP/RMON

Provedení:

Rack mounted 19"

Funkce:

QoS (Quality of service), VLAN (virtual local area network), L2, DHCP snooping, Web management/Smart switch, L2+, L3, Stohovatelnost

Ventilátor:

Ano

Počet portů SFP28:

Počet portů LAN:

Přenosová rychlost LAN (Mb/s):

10000

Maximální počet portů:

Počet SFP+ portů:

Popis TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

Naposledy navštívené produkty

TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

Zebra připojovací kabel, RS232, Nixdorf

Zavolejte nám

Nebo nám napište na

HARDWARE FEATURES
Interface	• 6× 10/25G SFP28 Slots • 26× 10G SFP+ Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type C Console Port • 1× RJ45 Management Port
Fan Quantity	Four field-replaceable and hot-swappable fans
Physical Security Lock	?
Power Supply	Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
Power Consumption	86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting	Rack Mountable
Max Heat Dissipation	295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity	820 Gbps
Stacking	• Stacking Number: 8 • Stacking Port: 25G SFP28 • Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate	610.1 Mpps
MAC Address Table	128 K
Packet Buffer Memory	8 MB
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Strom Control • Voice VLAN • User-Defined OUI
L3 Features	• Routing IP Interfaces - Static Routing - Host Route Table - RIP v1/v2 - RIPng - OSPFv2/v3 - VRRP - ECMP - ARP Proxy • DHCP - DHCP Server - DHCP Relay - DHCPv6 Relay - DHCP Snooping - DHCPv6 Snooping • Multicast - Multicast Table - IGMP v1/v2/v3 - Static Multicast Routing
L2 and L2+ Features	• Switching - Port Mirroring(SPAN) - RSPAN - Loopback Detection - Traffic Monitor • Trunking - Static LAG - LACP 802.3ad • Mac Address - MAC Address Table - Static MAC - Dynamic MAC Address - Filtering MAC Address - MAC Flapping • STP - STP 802.1d - RSTP 802.1w - MSTP 802.1s - Loop/Root/TC Protect - BPDU Protect/Filtering • ERPS • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering
Advanced Features	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
VLAN	• IEEE 802.1q Tag VLAN • MAC VLAN • Protocol VLAN • VLAN VPN(QinQ) • Private VLAN • GARP/GVRP • Voice VLAN • Multicast VLAN • Management VLAN
Security	• Access Security - Port/MAC/IP-based Access Control - SSL - SSH • Port Security • Port Isolation • CPU-Deffend • Time Range - Time Range Defination - Periodic Time Range - Absolute Time Range - Time Holiday • ACL - Entries - L2/L3/L4 ACL - ACL Action - ACL over VLAN - ACL over Port • IP-MAC Binding - IP+MAC+PORT+VID Binding - Manual Binding - ARP Scanning - DHCP Filter - DHCPv6 Filter - DHCP Option 82 • ARP Inspection (Dynamic ARP Inspection) • IP Source Guard • IPv6 Source Guard • ND Neighbor Discovery/ ND Snooping/ ND Filtering • DoS Defend • Authentication, Authorization & Accounting (AAA) - 802.1X Port Authentication - RADIUS Authentication - RADIUS Accounting - TACACS+ Authentication
MANAGEMENT
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log
OTHERS
Package Contents	• SX6632YF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

TP-Link OMADA switch SX6632YF

26portový 10G stohovatelný L3 řízený agregační switch se 6x 25G sloty
