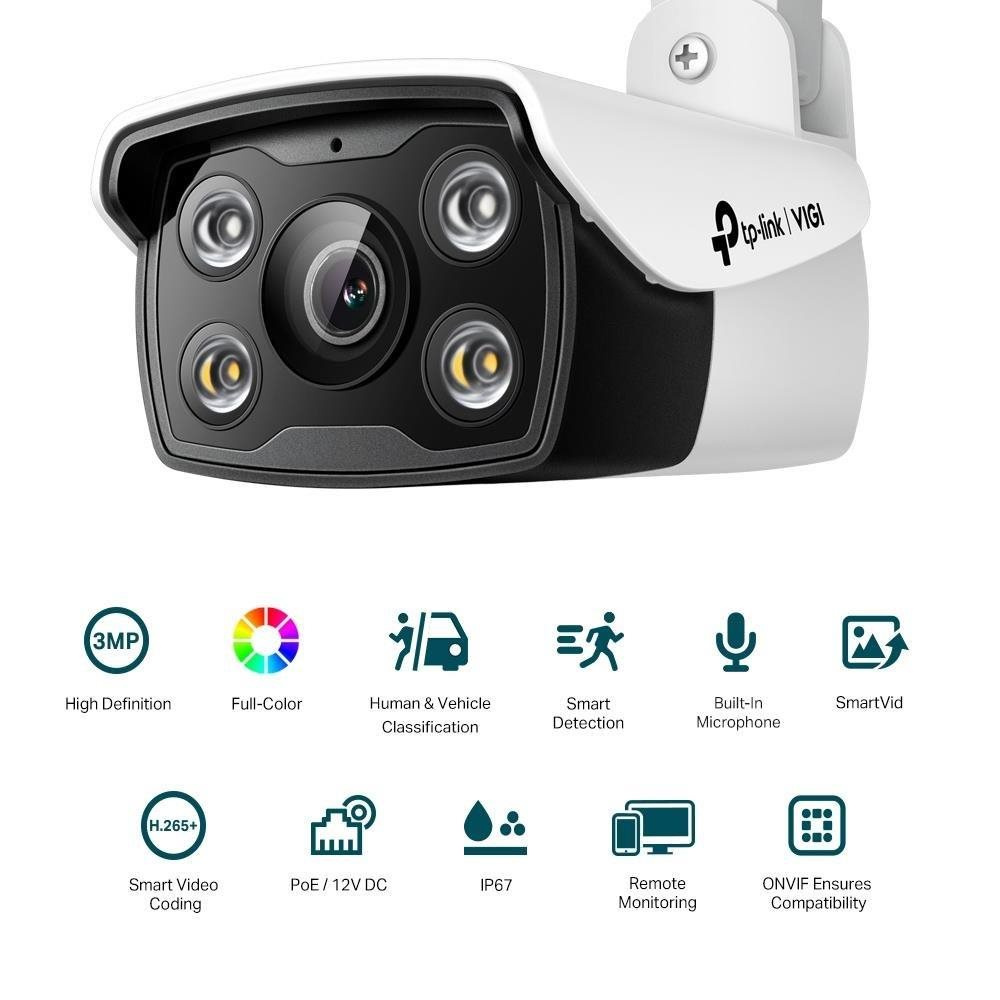

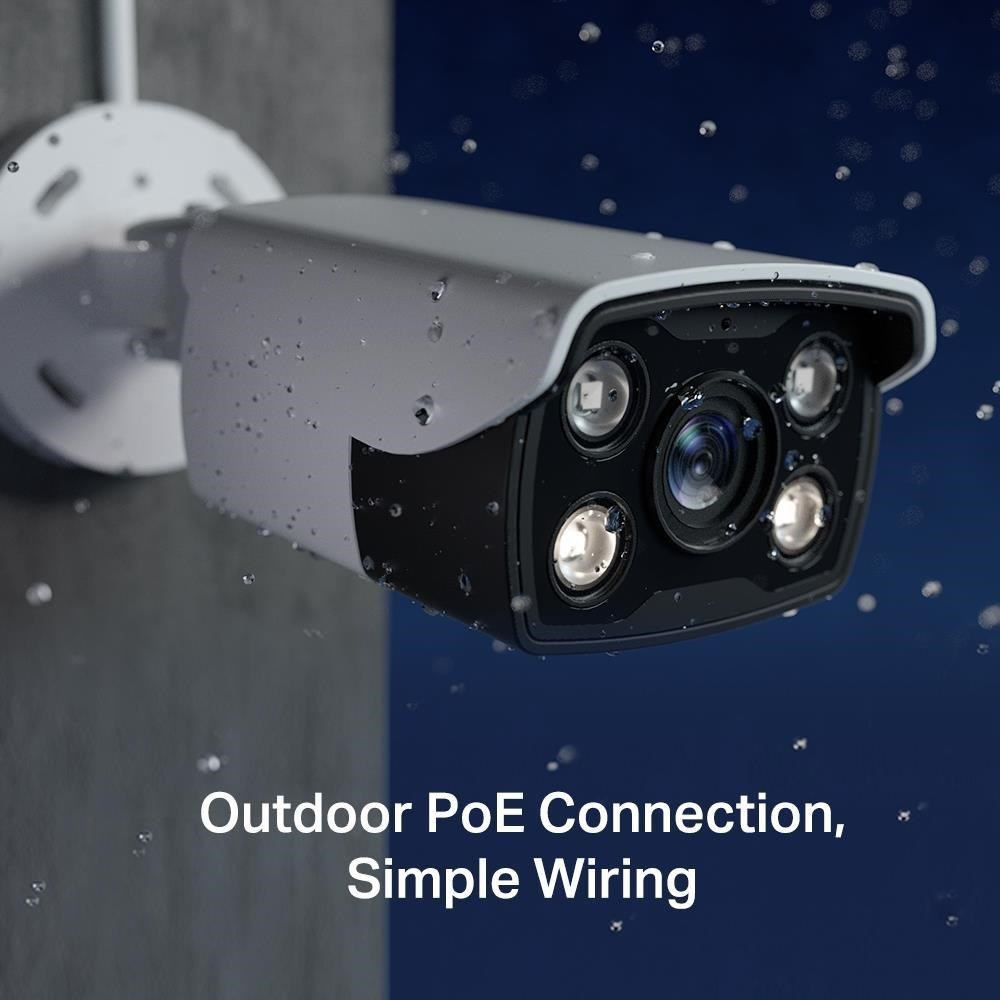

TP-Link VIGI C330(2.8mm), 3MP, Bullet, PoE, IR 30m, Micro SD card

Name: TP-Link VIGI C330(2.8mm), 3MP, Bullet, PoE, IR 30m, Micro SD card
Brand: TP-link
SKU: 438865
Price: 1576 CZK
Availability: OutOfStock

Kód: 438865

Na dotaz

Termín a způsob doručení

TP-link

Technologie:IP kamery; Provedení:Bullet; Použití:Venkovní; Typ objektivu:Fixní; Rozlišení (MPx):3; Ohnisková vzdálenost (mm):2,8; Počet snímků (fps):30; I/O:Alarm, Vestavěný mikrofon; Napájení:12 V DC, PoE, PoE+; Spotřeba (W):5-10; IR/LED přísvit (m):30; IR/LED přísvit (m):30; Stupeň krytí IP:IP67; Stupeň krytí IK:Neuveden.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

438865

EAN:

4895252501773

Záruka:

36 Měsíc(ů)

Stav:

Ohnisková vzdálenost (mm):

2,8

IR/LED přísvit (m):

Technologie:

IP kamery

Provedení:

Bullet

Použití:

Venkovní

Paměťová karta:

Napájení:

PoE+

I/O:

Vestavěný mikrofon

Stupeň krytí IP:

IP67

Typ objektivu:

Fixní

Kódování:

H.264

Stupeň krytí IK:

Neuveden

Funkce pro vylepšení obrazu:

WDR

Spotřeba (W):

5-10

Počet snímků (fps):

30,000000000

Rozlišení (MPx):

3,000000000

IR/LED přísvit (m):

30,000000000

Popis TP-Link VIGI C330(2.8mm), 3MP, Bullet, PoE, IR 30m, Micro SD card

Naposledy navštívené produkty

TP-Link VIGI C330(2.8mm), 3MP, Bullet, PoE, IR 30m, Micro SD card

3mk ochranná folie SilverProtection+ pro Sony Xperia 10 V

3mk ochranná folie SilverProtection+ pro Xiaomi Mi 9T/9T Pro

Zavolejte nám

Nebo nám napište na

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Lens	2.8 mm
Aperture	2.8 mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm: 107.5°/57.2°/128.7°(H/V/D)
IR Working Distance	30m
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm
Aperture	F1.6
FOV	2.8 mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
Lens Mount	M12
DORI Distance	2.8 mm: Detect: 52 m (170 ft) Observe: 22 m (71 ft) Recognize: 10 m (34 ft) Identify: 5 m (17 ft)
VIDEO
Max. Resolution	2304 × 1296
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	N/A
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: -90° to 90° Tilt: -90° to 90°
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	N/A
Audio Input	N/A
Audio Output	N/A
Audio Compression	N/A
Audio Sampling Rate	N/A
Environment Noise Filtering	N/A
Audio Bit Rate	N/A
NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
ONVIF	Yes
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	-
Video Output	-
On-board Storage	-
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning
Linkage Method	N/A
Output Notification	Message Push
GENERAL
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Dimensions( H X W X D )	174 × 78 × 70 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.26 Kg
Gross Weight	0.4 Kg
Power Consumption	12V DC: Max 5.4W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Protection	IP67
Product Dimensions (L x W x H)	174 × 78 × 71 mm
Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 × 1296)
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

TP-Link VIGI C330(2.8mm), 3MP, Bullet, PoE, IR 30m, Micro SD card

TP-Link VIGI C330 (2.8mm)

Venkovní Vigi 3MPx bullet síťová kamera s plnobarevným nočním viděním
