HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW) (desktop or wallmount)
Kód: 1881092Skladem
Termín a způsob doručení
Typ aktivního prvku:AP (Access Point); Frekvenční pásmo (GHz):2,4 + 5 (Dual Band); Podporované standardy:802.11ax; Zabezpečení:WPA2, WPA3; Typ antény:Integrovaná; USB port; Slot na SIM kartu; Použití:Vnitřní; Typy PoE:PoE - In + PoE - Out; Počet portů LAN:0; Počet portů LAN:0; Počet WAN portů:1; Počet WAN portů:1.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1881092
EAN:
190017676296
Záruka:
24 Měsíc(ů)
Stav:
Typ aktivního prvku:
AP (Access Point)
Frekvenční pásmo (GHz):
2,4 + 5 (Dual Band)
Připojení externí antény:
Ne
Podporované standardy:
802.11ax
USB port:
Ano
Další vlastnosti:
PoE (Power over ethernet), Podpora 5G, QoS (Quality of Service), Podpora Wi-Fi Mesh, Rodičovská kontrola, Firewall, Síť pro hosty, Print server, Management, FTP server, VLAN
Slot na SIM kartu:
Ano
Použití:
Vnitřní
Zabezpečení:
WPA3, WPA2
Typ antény:
Integrovaná
Typy PoE:
PoE - In + PoE - Out
Počet WAN portů:
1
Počet WAN portů:
1
Popis HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW) (desktop or wallmount)
HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW) S1U76A HPE Networking Instant On AP22D Specifications

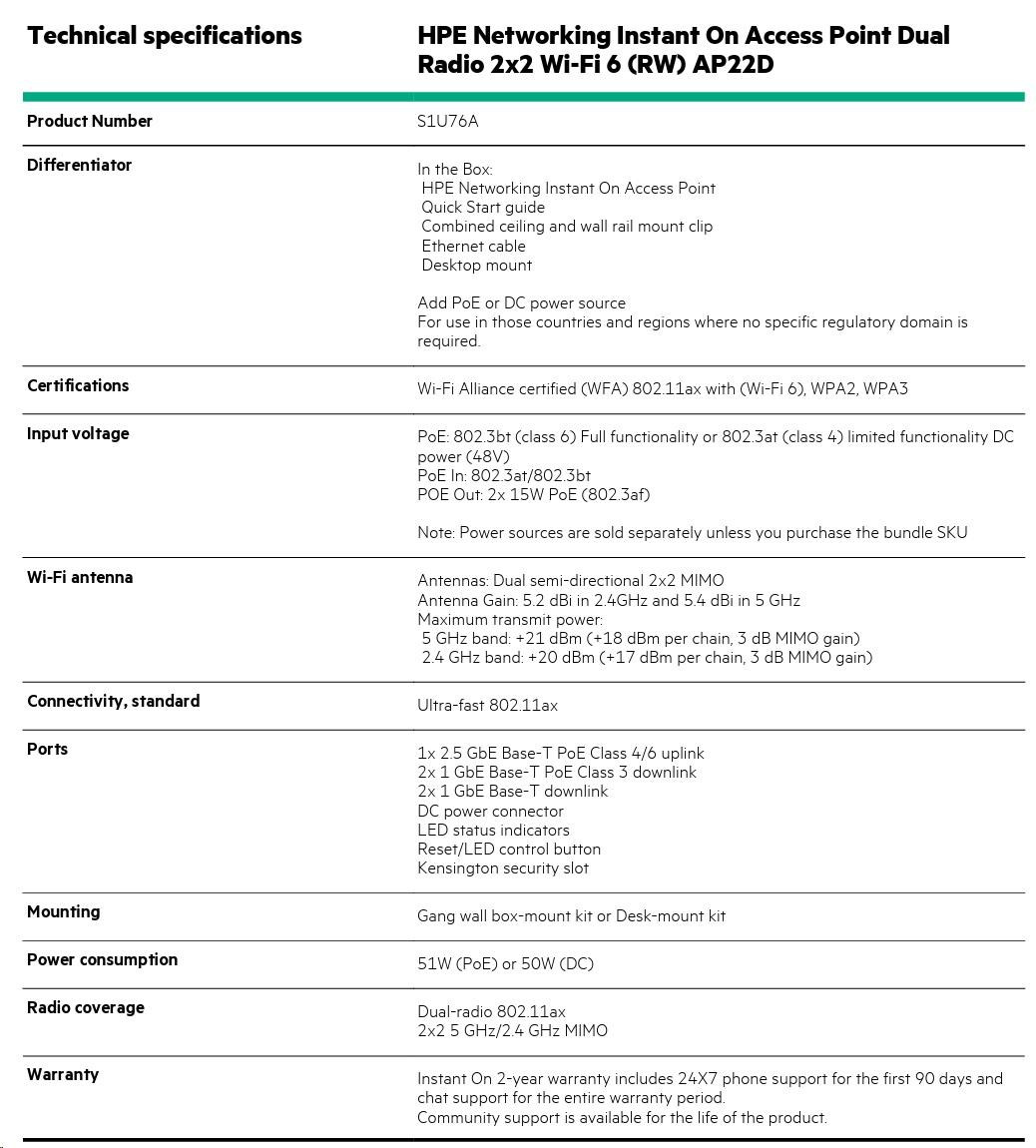

Technical Specifications
Product Information
- Product Name: HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
- Product Number: S1U76A
- Differentiator: For use in countries/regions where no specific regulatory domain is required.
In the Box
- HPE Networking Instant On Access Point
- Quick Start Guide
- Combined ceiling and wall rail mount clip
- Ethernet cable
- Desktop mount
- Add PoE or DC power source (sold separately unless bundle SKU is purchased)
Certifications
- Wi-Fi Alliance certified (WFA)
- 802.11ax (Wi-Fi 6)
- WPA2, WPA3
Power and Input Voltage
- PoE Input: 802.3bt (Class 6) full functionality or 802.3at (Class 4) limited functionality
- DC Power: 48V
- PoE In: 802.3at / 802.3bt
- PoE Out: 2x 15W PoE (802.3af)
Wi-Fi Antenna
- Type: Dual semi-directional 2x2 MIMO
- Antenna Gain: 5.2 dBi (2.4GHz), 5.4 dBi (5GHz)
- Max Transmit Power:
- 5GHz: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
- 2.4GHz: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Connectivity Standards
Ultra-fast 802.11ax
Ports
- 1x 2.5 GbE Base-T PoE (Class 4/6 uplink)
- 2x 1 GbE Base-T PoE (Class 3 downlink)
- 2x 1 GbE Base-T downlink
- DC power connector
- LED status indicators
- Reset/LED control button
- Kensington security slot
Mounting Options
- Gang wall box-mount kit
- Desk-mount kit
Power Consumption
- 51W (PoE)
- 50W (DC)
Radio Coverage
Dual-radio 802.11ax 2x2 5GHz / 2.4GHz MIMO
Warranty
Instant On 2-year warranty includes:
- 24x7 phone support for the first 90 days
- Chat support for the entire warranty period
- Community support for the life of the product
